Alcohol-based flux

EO-B-016 (Multiflux)

Recommended method of application

Wave, selective and manual soldering processes, dip soldering processes and strand tinning

No Clean-Flux, alcohol-based
Di-carboxylic acid activator resin complex, halide-free (WEEE/RoHS-compliant) [OSP-compatible]
Type ISO 9454: 1231 (1.2.3.A) // DIN-EN 61190-1-1 (acc. to J-SDT004) (IEC: REL0)

Cat. no. 6102

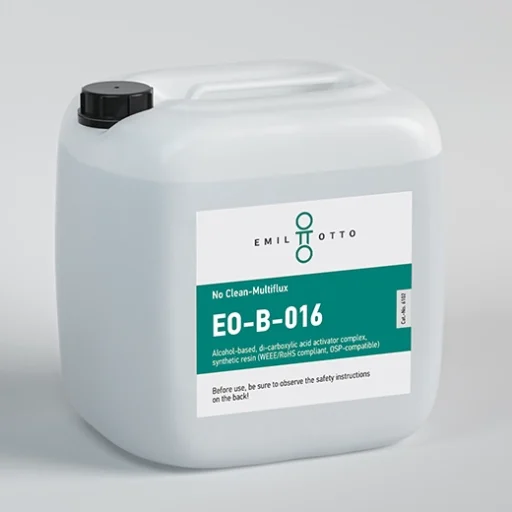

6102-Kanister-EO-B-016-EN_520x520px

Technical data

Appearance:Colorless to amber-colored, clear liquid
Hazardous goods:Yes
Solids content:5.0 wt.-%
Acid value:32 - 38 mg KOH/g
Halogenide-free:Yes
Resinous:Yes
Available as a concentrate:no
Density at 20 °C:0.799 (+/- 0.004) g/ml
Flash point:12 °C
Durability:12 months
Storage conditions:at 5 - 25°C, dry, originally sealed

Description

EO-B-016 is a flux of the latest generation. This multiflux was specially developed for selective soldering. However, it is also ideally suited for wave and manual soldering processes as well as for dip soldering and strand tinning. It can be applied using all standard application methods (except foaming).

The solids content is 5 wt.-%.

Customer added value

  • Wide range of applications
  • Outstanding soldering properties (penetration, wetting)
  • Almost residue-free despite higher solids content
  • Best soldering results even with outdated or overlapping PCBs and components
  • Wide process window (very high thermal stability, very good activity over a very large interval)
  • Successful passing of internal test (SIR selective)

Packaging units

Dosing bottle: 50 ml
Metering pen: 8 ml
Canister: 5 l, 20 l
Product information: EO-B-016 (Multiflux)
