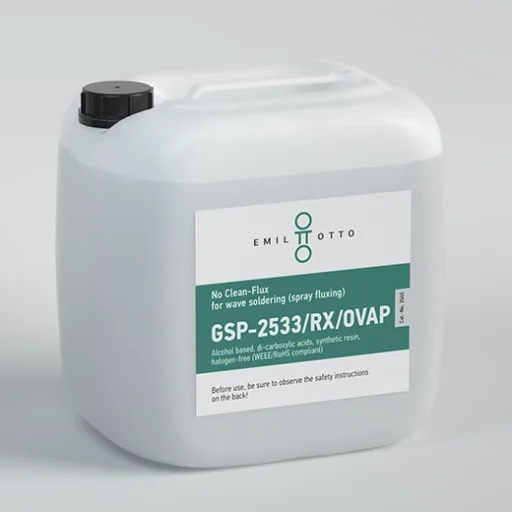

Wave soldering (spray fluxing)
No Clean-Flux, alcohol-based
Di-carboxylic acids, synthetic resin, halide-free (WEEE/RoHS-compliant)
Type ISO-9454: 1231 // DIN EN 61190-1-1 (according to J-STD004) (IEC: REL0)
| Appearance: | Colorless to reddish, clear liquid |
| Hazardous goods: | Yes |
| Solids content: | 2.5 wt.-% |
| Acid value: | 22 - 25 mg KOH/g |
| Halogenide-free: | Yes |
| Resinous: | Yes |
| Available as a concentrate: | No |
| Density at 20 °C: | 0.794 (+/- 0.003) g/ml |
| Flash point: | 12 °C |
| Durability: | 12 months |
GSP-2533/RX/OVAP is the predecessor of the S-250/FRO, which has proven itself over many years. Very good soldering results have been achieved regardless of the system type. The cleanliness is very good. The GSP-2533/RX/OVAP is not suitable for foam fluxing. It is not recommended for selective and manual soldering. Please note the minimum shelf life of 6 months. In practice, it has been shown that when used correctly, washing of PCBs soldered with this flux can be largely dispensed with. IC testing with needle adapters is usually carried out without any problems.
