Wave and selective soldering, manual and repair soldering, dip soldering, strand tinning
No Clean-Flux, alcohol-based
Di-carboxylic acids, low resin content, halogenide-free (WEEE/RoHS-compliant)
Type ISO-9454: 2231 // DIN EN 61190-1-1 (according to J-STD-004) (IEC: ORL0)
</tr
| Appearance: | Colorless to yellowish, clear liquid |
| Hazardous goods: | Yes |
| Solids content: | 3.5 wt.-% |
| Acid value: | 23 - 27 mg KOH/g |
| Halogenide-free: | Yes |
| Resinous: | Yes |
| Available as a concentrate: | no |
| Density 20 °C | 0.797 (+/- 0.003) g/ml |
| Flash point: | 12 °C |
| Durability: | 12 months |

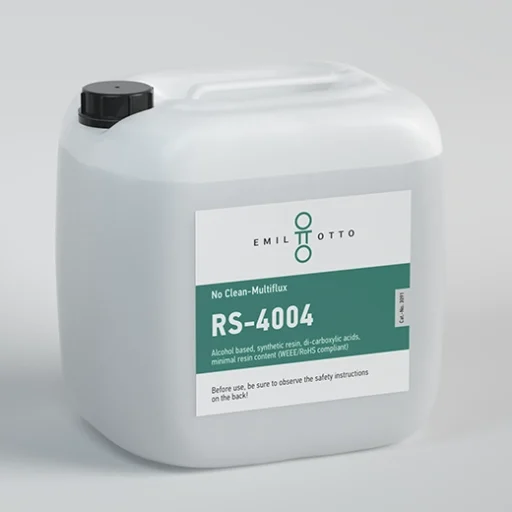

The RS-4004 was specially developed for selective and wave soldering processes as well as for strand tinning. It is also suitable for hand and dip soldering. It therefore fulfills all the requirements of a multiflux. It can be applied using all standard application methods. The solids content is 3.5 wt.-%. The flux contains a special corrosion inhibitor.
