Flux gel

Solder Lotion PinQ

Recommended method of application

Alternative for typical solder grease applications, conventional soft-soldering of iron, copper, and brass materials

Ready-to-use flux paste, halogen-activated
Type ISO 9454: 3.1.2.C

Cat. no. 0071

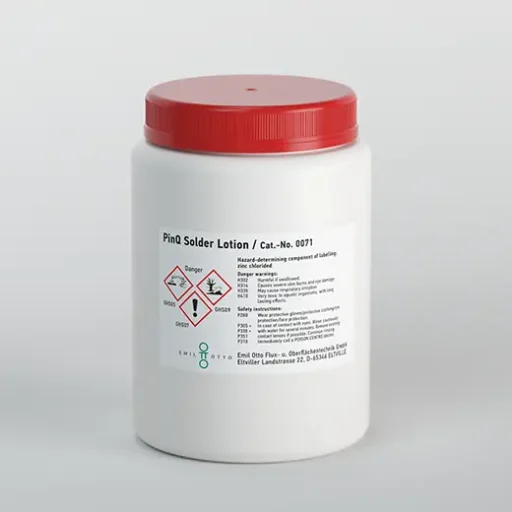

0071_EO_Loettlotion-PinQ_500ml_EN_520x520px

Technical data

Appearance:pink paste
Density at 20°C:1.60 - 1.64 g/cm³
Residues:must be removed
Durability:24 months

Customer added value

Very good wetting properties
Very good soldering properties, large working temperature range (150 – 260 °C)
Good handling, drip-free application, easily metered, low smoke and odour formation
Environmentally friendly due to lack of heavy metals and freedom from organic solvents
Very strongly activated but minimal tendency to corrode

Packaging units

Can: 250 ml
Extras: Other packaging units on request
Product information: Solder Lotion PinQ
