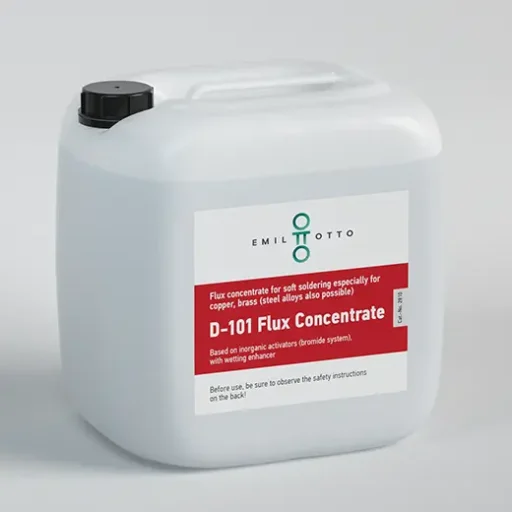

D-101 Super Concentrate

Recommended method of application

Conventional soft soldering (hand, dip and furnace soldering) of copper materials, especially radiator construction

Flux concentrate, inorganic, bromide, chloride-free
Type ISO 9454: 3.1.2.A

Cat. no. 2810
dekoratives Element

Technical data

Appearance:Colorless to light yellow paste
pH value:2 - 4
Density at 20 °C:1.5 - 1.7 g/cm³
Water solubility:Completely soluble in water
Residues:are to be removed
Durability:24 months

Customer added value

  • Soft solder flux concentrate, especially for radiator construction
  • Can be adjusted to the respective process by diluting with water (up to 1:15)
  • Very good wetting properties
  • Very good soldering properties, wide operating temperature range
  • Low smoke and odor formation
  • Highly activated
  • Residues are easy to remove

Packaging units

Canister: 50 kg
Extras: Other packaging units on request
Product information: D-101 Super Concentrate
