Electronics
Solder paste

ALUSOL-Sn-X

Recommended method of application

Soft soldering and tinning of aluminium and aluminium alloys with pure tin (Sn100)

(Solder: Sn100 pure tin)
(Solder: Sn100 pure tin)
Type ISO-9454: 2.1.3.3

Cat. no. 0968

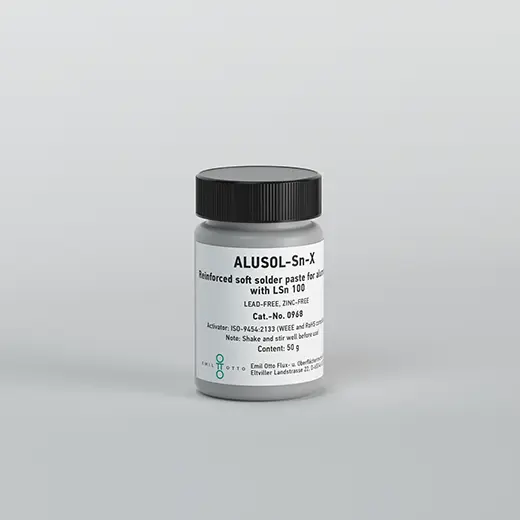

0968_EO_ALUSOL-SN-X_50g_EN_520x520px

Technical data

Appearance:grey-silver paste
Metal alloy:Sn 100
Particle size:< 80 μ
Metal portion:70 %
Flux type:2.1.3.C
Flux portion:30 %
Density at 20 °C:3 - 4 g/cm³
Durability:24 months

Customer added value

  • With X-factor, reinforced version
  • Simple handling, easy to stir
  • No separate solder dispenser necessary
  • Very highly activated
  • High temperature range: 250 - max. 450 °C
  • Very clean solder joints
  • Extremely easy handling, no need for time-consuming soldering with tube solder
  • Problem-free storage, can be stored at room temperature and does not harden (no polymerization reactions)
  • Only low hazardous substance classification
  • No dangerous goods according to the current transport regulations

Packaging units

Brush bottle: 50 g
Extras: Other packaging units on request
Product information: ALUSOL-Sn-X
