Electronics
Flux concentrate

D-101 Super Concentrate

Recommended method of application

Conventional soft-soldering (manual, immersion, furnace soldering) of copper materials, cooler construction

Flux concentrate, inorganic, bromic, chloride-free
Type ISO 9454: 3.1.2.A

Cat. no. 2810

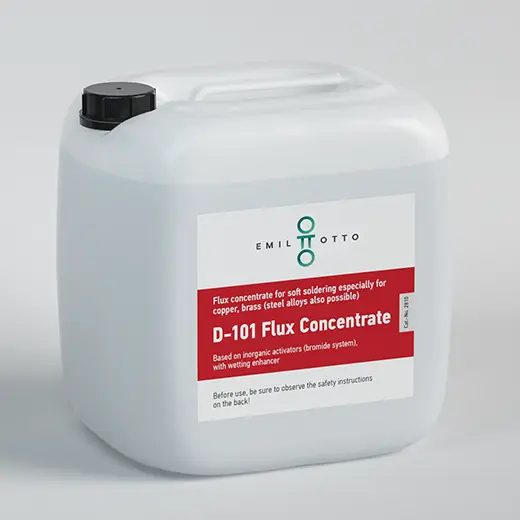

2810_EO_D-101SuperKonzentrat_Kanister30l_EN_520x520px

Technical data

Appearance:colourless to light yellow paste
ph-value:2 - 4
Density at 20 °C:1.5 - 1.7 g/cm³
Water solubility:completely soluble in water
Residues:must be removed
Durability:24 months

Customer added value

  • Adaptable to each process by dilution with water (up to 1:15)
  • Can be adjusted to the respective process by diluting with water (up to 1:15)
  • Very good wetting properties
  • Very good soldering properties, large working temperature range
  • Low smoke and odour formation
  • Strongly activated
  • Residues are easy to remove

Packaging units

Canister: 50 kg
Extras: Other packaging units on request
Product information: D-101 Super Concentrate
