Electronics
Flux concentrate

D-303 Ultra Concentrate

Recommended method of application

Conventional soft-soldering (manual, immersion, furnace soldering) of copper materials, cooler construction

Flux concentrate, inorganic, bromic, chlorinated
Type ISO 9454: 3.1.2.A

Cat. no. 2833

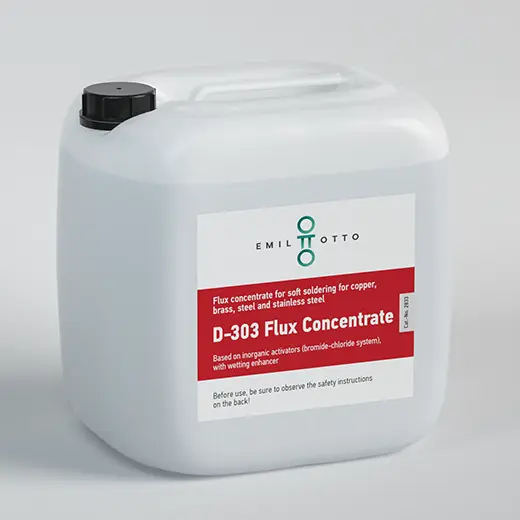

2833_EO_D303_UltraKonzentrat_Kanister30l_EN_520x520px

Technical data

Appearance:colourless to light yellow liquid
ph-value:4 - 7
Density at 20 °C:1.7 g/cm³
Water solubility:easily soluble in water, arbitrarily miscible with water
Residues:must be removed
Durability:24 months

Customer added value

  • Soft solder flux concentrate, which can be adjusted to the respective process by diluting with water
  • Very good wetting properties
  • Very good soldering properties
  • Very highly activated
  • Residues are very easy to remove

Packaging units

Canister: 50 kg
Extras: Other packaging units on request
Product information: D-303 Ultra Concentrate
