EO-B-008 (multiflux)

Recommended method of application

Wave, selective, manual and repair soldering, dip soldering, strand tinning

No Clean flux, alcohol-based
Di-carboxylic acids, minimal resin content, halogenide-free (WEEE/RoHS compliant)
Type ISO-9454: 1231 // DIN EN 61190-1-1: L0 (REL0)

Cat. no. 6019

Technical data

Appearance:	colourless-light yellow, clear liquid
Hazardous goods:	Yes
Solids content:	4.0 wt.-%
Acid number:	32 - 35 mg KOH/g
Halogenide-free:	Yes
Resiny:	Yes
Available as a concentrate:	No
Density at 20 °C:	0.796 (+/- 0.003) g/ml
Flash point:	12 °C
Durability:	12 months

Description

With 4 wt.-%, EO-B-008 has a high solids content. EO-B-008 was developed especially for short wave soldering systems where the PCB spends a holding time in the preheating phase. The subsequent soldering process takes place in a very active wave. Thanks to the EO-B-008, the PCB has a very good soldering result with a very clean surface after the soldering process.

Customer added value

Very good soldering properties (capillarity, wetting)
Broad process window (high thermal stability, good activity over a long interval)
Good residue behaviour (very clean, high SIR)

Packaging units

Dosing bottle: 50 ml

Metering pen: 8 ml

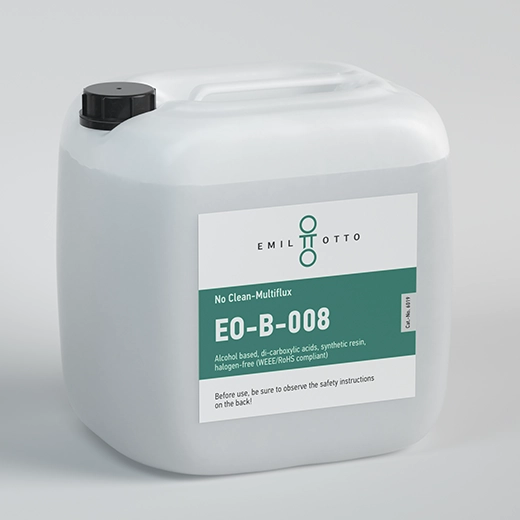

Canister: 20 l

Download product information

Product information: EO-B-008 (multiflux)
