Description

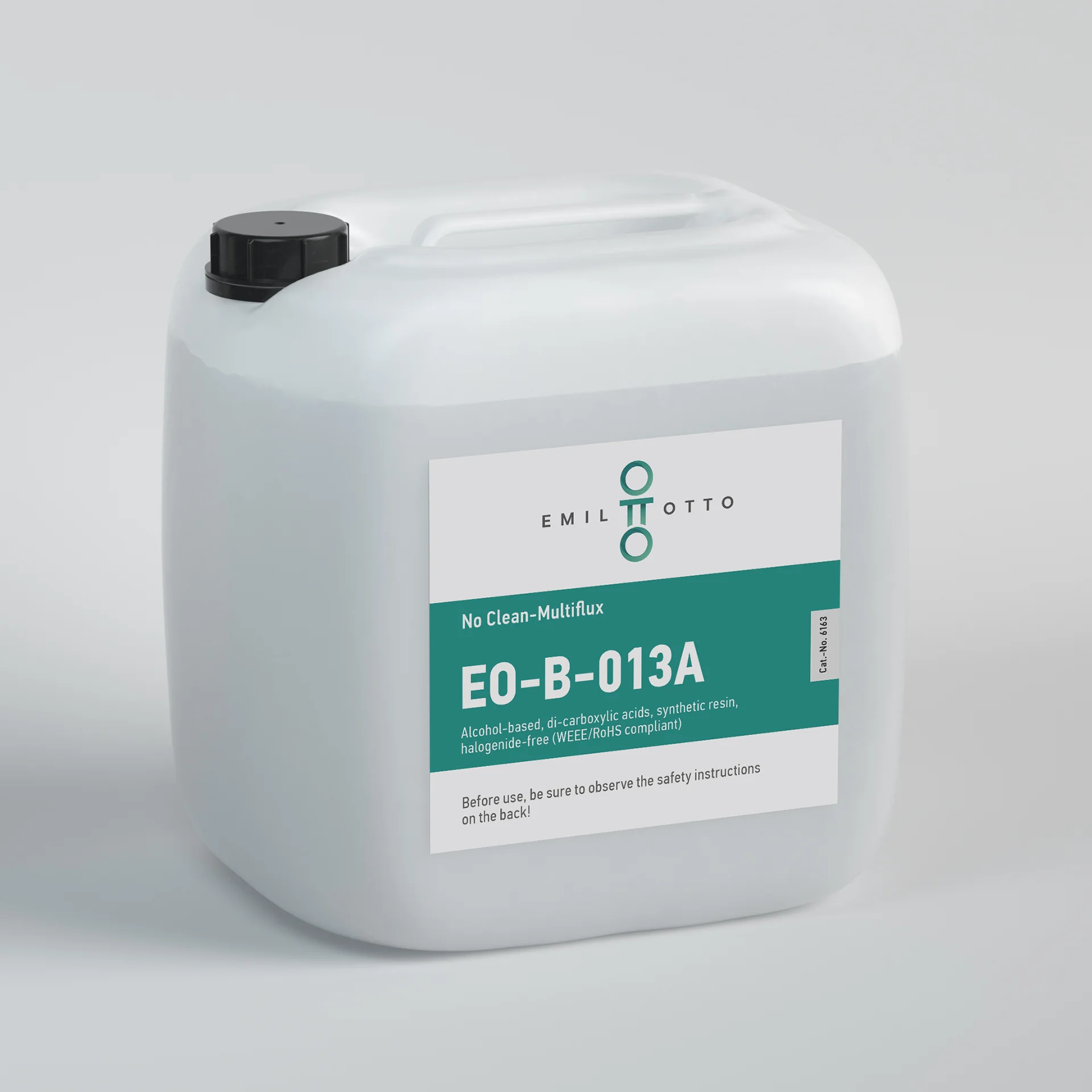

EO-B-013A is universally suitable for wave, selective and manual soldering of PCBs and complies with specification DIN-EN 61190-1-1: L0. Accordingly, it contains organic, halogen-free activating additives in a combination specially tuned to the thermal requirements of the soldering processes. This variant was specially developed for full-tunnel nitrogen applications and guarantees significantly better soldering results than conventional adipic acid solutions under full nitrogen thanks to a wide process window and high temperature stability.
EO-B-013A can be applied by brushing, spraying, dipping etc. The solids content is 2 %. EO-B-013A is totally free from corrosion action.
Information on the ingredients (hazardous substances), safe handling, storage, transport and disposal can be found in the current safety data sheet (SDS, SDS, MSDS).
Customer added value
- Wide range of applications (multiflux)
- Very good soldering properties (capillarity, wetting)
- Available as concentrate (granulate)
- Broad process window (very high thermal stability, good activity over a long interval)
- Very good residue behavior (very clean, high SIR)
- Recommended for N2-systems
- Successful passing of internal test (SIR selective)
