EO-B-016C (multiflux)

Recommended method of application

Wave, selective, manual and repair soldering, dip soldering, strand tinning

No Clean flux, alcohol-based
Di-carboxylic acid activator synthetic resin complex, halogenide-free (WEEE/RoHS compliant) [OSP compatible]
Type ISO 9454: 1231 (1.2.3.A) // DIN-EN 61190-1-1 (acc. J-STD-004) (IPC: REL0)

Cat. no. 6155

Technical data

Appearance:	colourless to amber, clear liquid
Hazardous goods:	Yes
Solids content:	3.8 - 4.2 wt.-%
Acid number:	27 - 31 mg KOH/g
Halogenide-free:	Yes
Resiny:	Yes
Available as a concentrate:	No
Density at 20 °C:	0.795 (+/- 0.003) g/ml
Flash point:	12 °C
Durability:	12 months
Storage conditions:	at 5 – 25 °C, cool and dry, original sealed, fire protection and explosion protection regulations must be observed

Description

EO-B-016C is a flux of the latest generation. It is a high-performance No Clean flux based on alcohol with a di-carboxylic acid activator complex and synthetic resin. This flux was developed for selective and wave soldering processes as well as for dip soldering, wire harness tinning and strand tinning. It can be used with all standard application methods (except foaming).

The solids content is 4 % by weight. EO-B-016C is completely corrosion-free.

Customer added value

Wide range of applications
Very good soldering properties (capillarity, wetting)
Virtually residue-free despite higher solids content
Best soldering results even with outdated or overlapping PCBs and components
Wide process window (very high thermal stability, very good activity over a very long interval)
Successful passing of internal test (SIR selective)

Packaging units

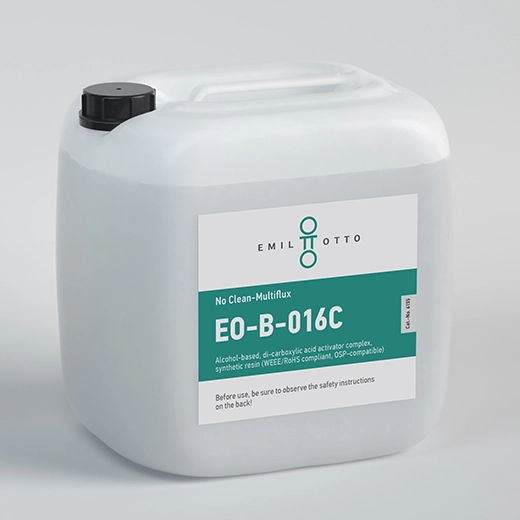

Canister: 5 l, 20 l

Extras: Other packaging units on request
