Description

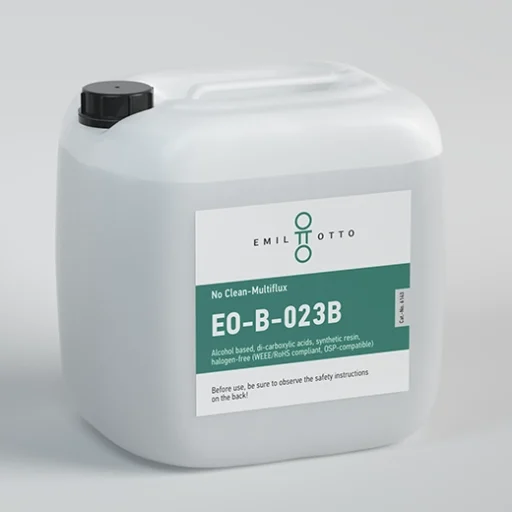

EO-B-023B is a No Clean flux of the latest generation. This multi-flux was developed for wave, selective and manual soldering processes as well as strand tinning and contains special highly effective activators that additionally strengthen the soldering process. It can be applied using all standard application methods (except foaming). The solids content is 3 wt.-% and is corrosion-free. Additional information on the ingredients (hazardous substances), safe handling, storage, transportation and disposal can be found in the current safety data sheet (SDS, SDS, MSDS). This flux is very versatile and OSP-compatible. Good results have been achieved in manual, wave and selective soldering as well as in cable assembly/strand tinning. The general rule that the amount of flux applied should always be as low as possible also applies to this product.
Spray fluxing: With the dosing option quantify the flux to 20 – 30 ml/min., observe the even distribution of flux on the circuit board (if necessary test with heat-sensitive paper) and then adjust to the optimal quantity.
Preheating: With “simple” circuit boards a preheating temperature of 80 – 110 °C is recommended on the top side of the circuit board, with “more complex” boards from 100 – 130 °C. The flux can be used both in systems containing leades as well as those that are lead-free.
Customer added value
- Wide range of applications (multiflux)
- Very good soldering properties (capillarity, wetting)
- Available as concentrate (granulate)
- Broad process window (very high thermal stability, good activity over a long interval)
- Very good residue behavior (very clean, high SIR)
- Successful passing of internal test (SIR selective)
