Description
EO-FLUX-Paste (BIO-BASED) FP-BIO-002 is a new No Clean-Flux paste and was specially developed for higher-quality electronics production and repair work on circuit boards. FP-BIO-002 is an absolute novelty as an electronic flux paste and contains the “BIO BASED” formulated B-POWER activation complex.
The highly effective “B-Power” activator complex is unique and consists of specially coordinated natural, highly pure substances (main components are waxes and special rosins, without colophony).

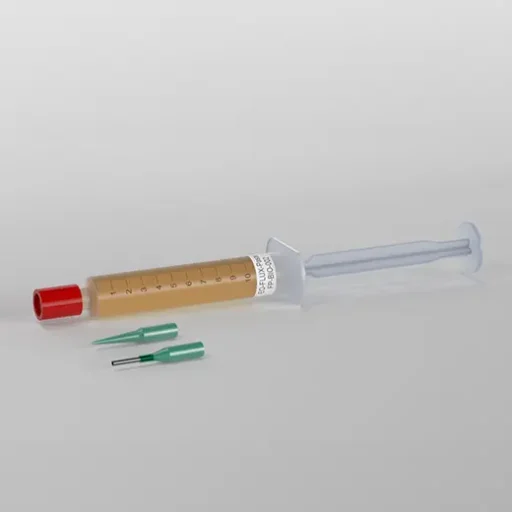

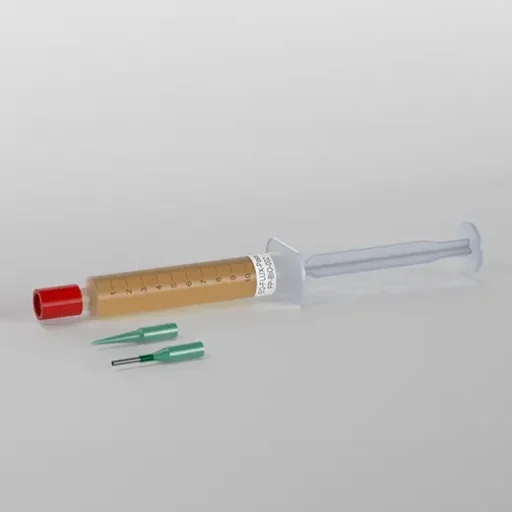

FP-BIO-002 is characterized, among other things, by a very strong “soldering process optimized” activity and very good wetting and spreading behavior. Due to these properties, the paste can be dosed extremely economically. The application is carried out using a stainless-steel dosing needle (or optionally a plastic dosing needle).
The flux paste can be processed individually, for example using hot air and soldering irons, but also with MINIFLOW soldering tips.
Customer added value
- NEW: “B-Power” activation complex
- Free from colophony
- Recommended for applications according to IPC / IPC 610
- Perfect soldering results
- Highly active, economical in consumption
- Also suitable for higher alloyed metal surfaces
- Overlaid pads, components, THT components and component legs are activated and solderable
- Careful and targeted dosage
- Supports the wave soldering of critical components (e.g. brass or nickel plugs) the application is carried out as already described
- Minimum durability: 24 months
