EO-G-002 (multiflux)

Recommended method of application

Wave and selective soldering

No Clean-Flux, water-based
Di-carboxylic acids, VOC-free, synthetic resin, halogen-free (WEEE/RoHS compliant)
Type ISO-9454: 2131 DIN EN 61190-1-1 (ORL0)

Cat. no. 6015

Technical data

Appearance:	colourless, minimal whitish liquid
Hazardous goods:	No
VOC:	0,0 %
Solids content:	3.0 wt.-%
Acid number:	24 - 27 mg KOH/g
Halogen-free:	Yes
Resiny:	Yes
Activators/resin:	di-carboxylic acids, VOC-free, synthetic resin, halogen-free
Solvent:	water-based
Flash point:	non-flammable
Available as a concentrate:	Yes
Durability:	12 months

Description

EO-G-002 is a merely water-based soldering flux for wave and selective soldering. It is ecologically harmless and non-flammable. The EO-G-002 with its soldering-related properties is at least just as good as comparable alcohol-based soldering fluxes. The soldering results and the cleanliness of the circuit boards after the soldering process are very good.

Practice has shown that no washing is needed for PCBs properly soldered with WB-35/SOX/DT.

Customer added value

Non-flammable (no legal restrictions for transportation, storage and handling)
Very good soldering properties (capillarity, wetting)
Broad process window (high thermal stability, good activity over a long interval)
Very good residue behavior (optically clean, high SIR)

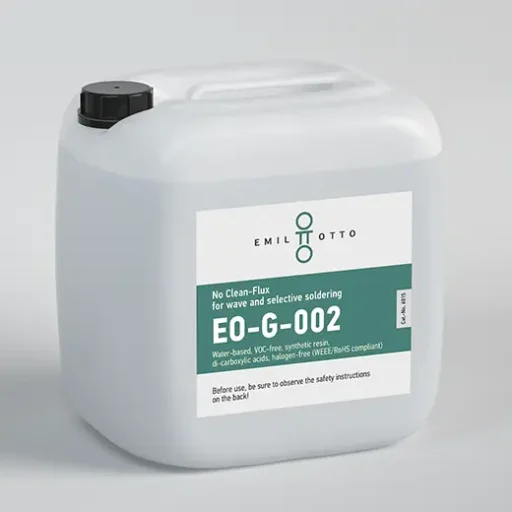

Packaging units

Canister: 20 l

Concentrate: for 20 l

Download product information

Product information: EO-G-002 (multiflux)
