EO-G-003 (multiflux)

Recommended method of application

Wave and selective soldering

No Clean-Flux, water-based
Di-carboxylic acids, VOC-free, resin-free, halogen-free (WEEE/RoHS compliant)
Type ISO-9454: 2131 DIN EN 61190-1-1 (ORL0)

Cat. no. 6008

Technical data

Appearance:	colourless, clear liquid
Hazardous goods:	No
VOC:	0,0 %
Solids content:	3.3 wt.-%
Acid number:	27 - 32 mg KOH/g
Halogen-free:	Yes
Resiny:	No
Activators/resin:	di-carboxylic acids, VOC-free, resin-free, halogen-free
Solvent:	water-based
Flash point:	non-flammable
Available as a concentrate:	No
Durability:	12 months

Description

EO-G-003 is a merely water-based soldering flux for wave and selective soldering. It is ecologically harmless and non-flammable. The EO-G-003 with its soldering-related properties is at least just as good as comparable alcohol-based soldering fluxes.

Customer added value

Non-flammable (no legal restrictions for transportation, storage and handling)
Very good soldering properties (capillarity, wetting)
Broad process window (high thermal stability, good activity over a long interval)
Very good residue behavior (optically clean, high SIR)

Packaging units

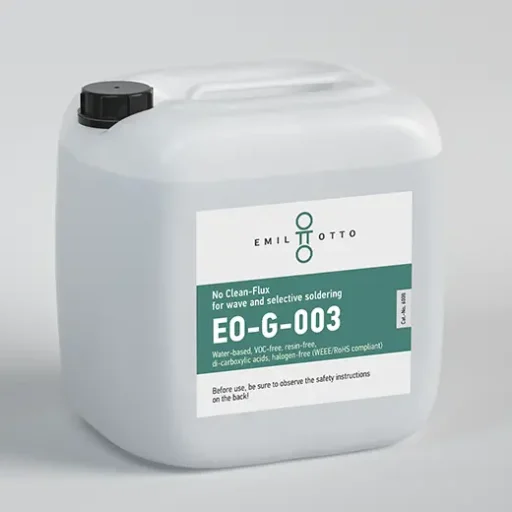

Canister: 20 l
