EO-MC-001 (metal)

Recommended method of application

Conventional soft soldering of copper materials, hot-dip metallising, strip tinning, special applications

Flux concentrate
Liquid concentrate for the production of aqueous and alcoholic flux for tinning processes
Organic hydrohalogen complex (WEEE/RoHS compliant)
Type ISO-9454: 2124 (according to J-STD-004: ORM1)

Cat. no. 6551

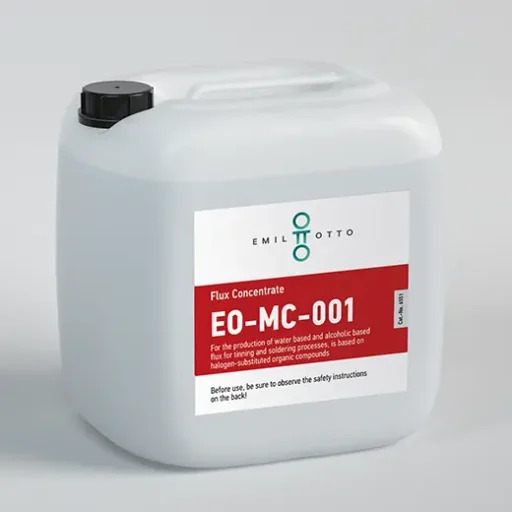

6651_EO-MC-001_Kanister30l_EN_520x520px

Technical data

Appearance:colourless-light yellow, transparent liquid
Density 20 °C1.05 - 1.08 g/ml
Activators/resin:organic hydrohalogen complex
Solvent:water
Flash point:not applicable, >80 °C
pH value (1/1):4 - 7
Bromide content [Br-]:9 - 11 %
Storage (recommendation):cool, dry and protected from light at 5 - 25 °C

Description

EO-MC-001 is a liquid concentrate and was specially developed for tinning processes. With this concentrate, it is possible for the user to tailor an alcohol- or water-based flux exactly for his process. EO-MC-001 is based on halogen-substituted organic compounds, with high-performance additives for optimum wetting and, above all, offers the advantages of a very broad effective temperature range (about 130 - 300 °C).

Recommendations for processing:
The recommended application concentration is between 5 - 50% of EO-MC-001 for the respective process. For very complex tinning process, the use is possible without additional dilution.

For electronic processes:
Water-based fluxes (classification according to J-STD-004: OR M1): Depending on the application up to a maximum of 15% of EO-MC-001 in DI water (Deionized water) [approx. 50 g/l to 150 g/L].
Alcohol-based fluxes (classification according to J-STD-004: OR M1): Depending on application up to a maximum of 15% of EO-MC-001 in isopropyl alcohol (propan-2-ol) [Approx. 40g/l to 120 g/l]. (Caution mixture is flammable, observe explosion protection)

Customer added value

  • No dangerous goods according to the current transport regulations
  • Coordination of an alcohol or water-based flux

Packaging units

Canister: 5 l, 20 l
Concentrate: for 20 l
Product information: EO-MC-001 (metal)
