Electronics
Emil Otto

EO-RA-007

Recommended method of application

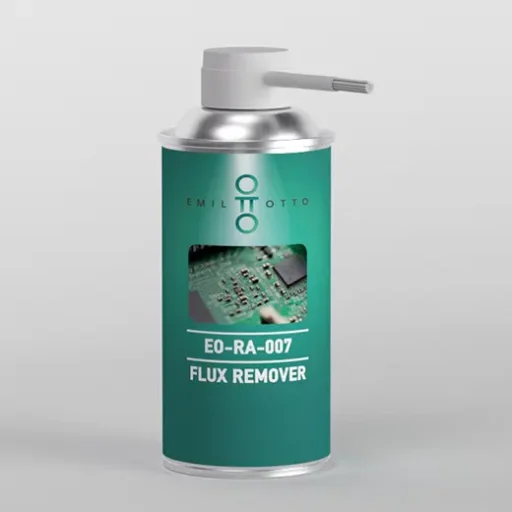

Special cleaner for the manual removal of organic residues from soldering processes, resins, waxes, oils, greases, paste-containing residues, fingerprints and dust on printed circuit boards

Isopropyl alcohol-solvent mixture, ready for use

Cat. no. 2947
dekoratives Element

Technical data

Appearance:Spray can, compressed gas packaging: colorless aerosol
Area of application:ready for use
Density at 20 °C:Spray can: <0.7 g/cm³
Cleaning fluid: 0.76 - 0.79 g/cm³
Boiling point/boiling range:Spray can: approx. -40 °C (aerosol, gas)
Flash pointSpray can: approx. -80 °C (aerosol, gas)
Cleaning fluid: 12 °C
Consistency:liquid
Active ingredients:Spray can: lsopropyl alcohol-solvent mixture
Storage conditions (recommendation):store at 5 – 25 °C, dry, sealed
Hazardous goods:Yes
Durability:36 months

Description

The flux remover EO-RA-007 was specially developed for the manual cleaning of flux residues. This special formulation easily cleans most organic residues from soldering processes, as well as greasy substances, fingerprints and dust on printed circuit boards and other surfaces. EO-RA-007 evaporates very quickly and leaves no residue on the cleaned area. The evaporation is optimized so that the contamination can be easily removed from the circuit board with an ESD cloth. With the additionally developed brush attachment, the flux or paste residues can be effectively loosened and removed from all areas of the circuit board.

Customer added value

  • Ideal for the rework sector
  • Easy, fast and precise removal of flux residues and residues
  • Highly efficient cleaning effect and economical to use
  • Short exposure time
  • Results in clean circuit boards and solder joints
  • Removal of fingerprints from printed circuit boards
  • High material compatibility

Packaging units

Canister: 5 l, 10 l, 20 l, 30 l
Spray can: 400 ml
Extras: Other packaging units on request
Product information: EO-RA-007
