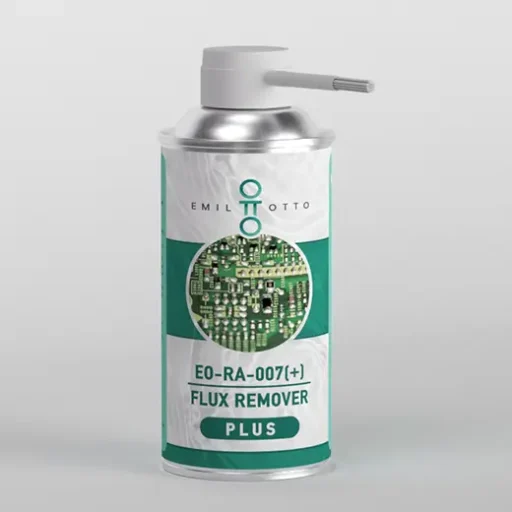

EO-RA-007 (+)

Recommended method of application

Special cleaner for manual removal of flux residues on assembled PCBs

Isopropyl alcohol solvent mixture (WEEE/RoHS compliant)
- Optimized, very fast drying time -

Cat. no. 2916
dekoratives Element

Technical data

Appearance:Spray can, pressurized gas packaging: transparent aerosol
Cleaning fluid: colorless liquid
Density at 20 °C:Spray can: < 0.7 g/ml
Cleaning fluid: 0.7 - 0.8 g/ml
Boiling point/boiling range:Spray can: < -20 °C (aerosol, gas)
Flash point:Spray can: < -20 °C (aerosol, gas)
Cleaning fluid: 1 °C
Active ingredients:lsopropyl alcohol-solvent mixture
Storage conditions (recommendation):store at 5 – 25 °C, dry, sealed
Durability:36 months

Description

The flux remover EO-RA-007(+) is a highly efficient electronics cleaner of the latest generation and was specially developed for the manual cleaning of flux residues on assembled printed circuit boards. This special formulation easily cleans most organic residues from soldering and bonding processes as well as greasy substances, fingerprints and dust on printed circuit boards and other surfaces.

It is characterized by its very fast drying time and its clean, residue-free behavior. Evaporation has been specially optimized so that contamination can be easily removed from the assembly using an ESD cloth. With the additionally developed brush attachment, flux or paste residues can be effectively loosened and removed from all areas of the assembled PCB. The EO-RA-007 PLUS (+) has a much more pleasant and very neutral odor and is also characterized by its improved drying properties compared to EO-RA-007 from.

EO-RA-007(+) is free of PFAS, POP, benzene compounds, sulphur compounds, halogens, REACH/CLP SVHC substances, as well as acids and alkalis.



Customer added value

  • Ideal for the REWORK area
  • Easy, fast and precise removal of flux residues and residues
  • 100 % Compatibility with plastic and other PCB components
  • Highly efficient cleaning effect
  • Short exposure time
  • Very fast drying
  • Residue-free
  • Results in clean circuit board and solder joints
  • Removal of fingerprints on printed circuit boards (PCBA)
  • High material compatibility
  • Economical in consumption

Packaging units

Spray can: 400 ml
Product information: EO-RA-007 (+)
