Alcohol- and water-based flux

EO-Y-003 (multiflux)

Recommended method of application

Wave and selective soldering

No Clean-Flux, alcohol- and water-based
Di-carboxylic acids, resin-free, halogen-free (WEEE/RoHS compliant)
Type ISO-9454: 2131 DIN EN 61 190-1-1 (ORL0)

Cat.-No. 6024

Technical data

Appearance:	colourless to yellowish, transparent liquid
Hazardous goods:	No
VOC:	7 %
Solids content:	3.3 wt.-%
Acid number:	27 - 32 mg KOH/g
Halogen-free:	Yes
Resiny:	No
Density 20 °C	0.9 - 1.0 g/ml
Activators/resin:	di-carboxylic acids, resin-free, halogen-free
Solvent:	short-chain alcohols and water
Available as a concentrate:	No
Flash point:	hardly flammable
Durability:	12 months

Description

The EO-Y-003 has been developed to be used with wave and selective soldering. Practice has shown that with the correct application, no washing of assembled printed circuit boards soldered with this flux is needed.

Customer added value

Wide range of applications
Very good soldering properties (capillarity, wetting)
Broad process window (high thermal stability, good activity over a long interval)
Very good residue behaviour (optically very clean, high SIR)

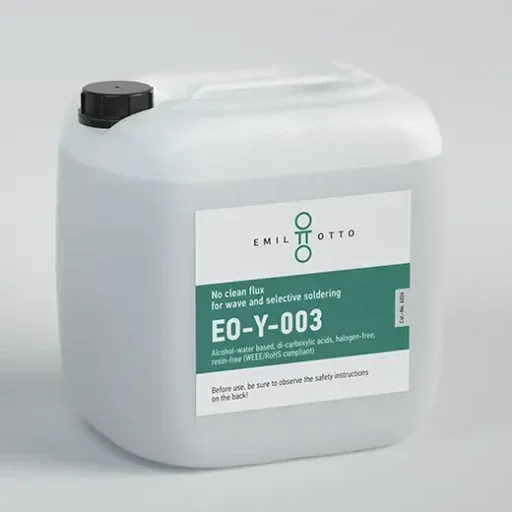

Packaging units

Canister: 20 l
