Alcohol- and water-based flux

EO-Y-005B (multiflux)

Recommended method of application

Wave and selective soldering

No Clean-Flux, water-based with added alcohol
Di-carboxylic acids, low VOC, halogen-free activated, with synthetic resin, rosin-free (WEEE/RoHS compliant)
Typ ISO-9454: 2231 (2.2.3.A) DIN EN 61190-1-1 (gem. J-STD-004) (ORL0)

Cat. no. 6093

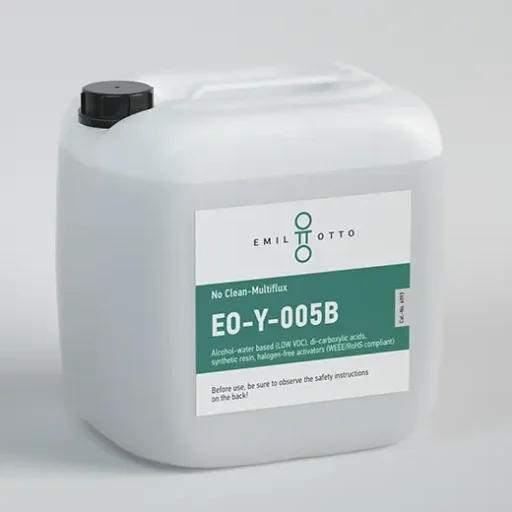

6093-Kanister-EO-Y-005B-EN_520x520px

Technical data

Appearance:clear, colourless liquid
Hazardous goods:No
VOC:7 %
Solids content:3.0 wt.-%
Acid number:24 - 27 mg KOH/g
Halogen-free:Yes
Resiny:Yes
Density 20 °C0.9 - 1.0 g/ml
Activators/resin:di-carboxylic acids, synthetic resin
Available as a concentrate:No
Flash point:hardly flammable
Durability:12 months

Description

EO-Y-005B is universally suitable for the wave and selective soldering of circuit boards and contains organic, halogen-free, activating additives formulated with a small amount of synthetic resin. This flux was developed in a combination with leaded and lead-free solders, coordinated especially to the thermal requirements of the soldering process. EO-Y-005B contains special alcoholic additives for the stabilization and improvement of the drying time in comparison with conventional water- or partially water-based fluxes.

Customer added value

  • Wide range of applications (multiflux)
  • Very good soldering properties (capillarity, wetting)
  • Broad process window (high thermal stability, good activity over a long interval)
  • Very good residue behavior (optically very clean, high SIR)

Instructions for use::
This flux must be applied by spraying. After application, it is advisable to dry the flux in order to transform the liquid into fusible phase which favours the soldering operation.

Foam fluxes: Not recommended

Spray fluxing: If possible, try at first a quantity of 20 – 30 ml/min. and observe the distribution of the flux. After that, correct to the quantity. Air-pressure: 18 – 22 l/min.

Preheating: For “simple” PCBs, a preheating temperature of 80 – 110 °C is recommended, for “more complex” PCBs of 100 – 130 °C on the top side of the PCB. The use can be made both in leaded and lead-free solder systems.

Packaging units

Canister: 5 l, 20 l
Extras: Other packaging units on request
Download product information
Product information: EO-Y-005B (multiflux)
