EO-Y-006A (multiflux)

Recommended method of application

Wave and selective soldering, dip soldering

No Clean flux based on alcohol, partially aqueous
Di-carboxylic acids, low VOC, halogen-free activated, with synthetic resin, rosin-free (WEEE/RoHS compliant)
Typ ISO 9454: 2231 (2.2.3.A) DIN EN 61190-1-1: (IEC ORL0)

Cat.-No. 6985

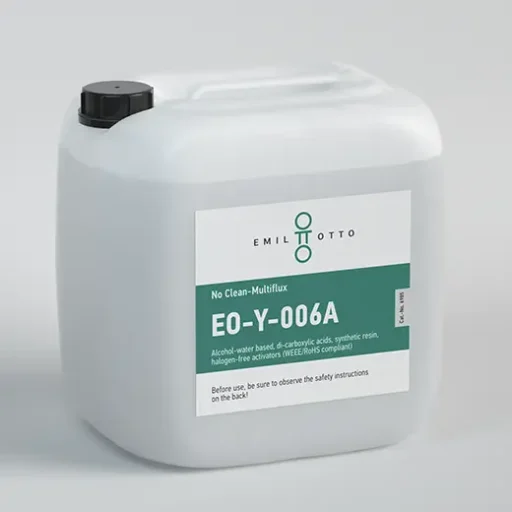

6985-Kanister-30l-EO-Y-006A-EN_520x520px

Technical data

Appearance:colourless, transparent liquid
Hazardous goods:Yes
VOC:60 %
Solids content:2.0 wt.-%
Acid number:16 - 19 mg KOH/g
Halogen-free:Yes
Resiny:Yes
Density 20 °C0.86 - 0.88 g/ml
Activators/resin:di-carboxylic acids, synthetic resin
Available as a concentrate:No
Flash point:20 °C
Durability:12 months

Description

EO-Y-006A is universally suitable for the wave- and selective soldering of circuit boards and contains organic, halogen-free, activating additives formulated with a small amount of synthetic resin. This flux was developed in a combination with leaded and lead-free solders, coordinated especially to the thermal requirements of the soldering process. EO-Y-006A contains special alcoholic additives for the stabilization and improvement of the drying time in comparison with conventional water- or partially water-based fluxes.

Customer added value

  • Wide range of applications (multiflux)
  • Very good soldering properties (capillarity, wetting)
  • Broad process window (high thermal stability, good activity over a long interval)
  • Very good residue behavior (optically very clean, high SIR)

Recommendations for the processing of this flux:
Foam fluxes: Not recommended
Spray fluxing: If possible, try at first a quantity of 20 – 30 ml/min. and observe the distribution of the flux. After that, correct to the quantity. Air-pressure: 18 – 22 l/min.
Preheating: For “simple” PCBs, a preheating temperature of 80 – 110 °C is recommended, for “more complex” PCBs of 100 – 130 °C on the top side of the PCB. The use can be made both in leaded and lead-free solder systems.

This flux is very versatile in use and OSP-compatible. Good results are achieved with manual, wave and selective soldering as well as for dip soldering. The generally applicable rule, to basically select as little of the applied flux as possible, is also valid for this product.

Packaging units

Canister: 5 l, 20 l
Extras: Other packaging units on request
