EO-Y-014A (multiflux)

Recommended method of application

Wave and selective soldering

No Clean-Flux, water-based with added alcohol
Di-carboxylic acids, low VOC, halogen-free activated, with synthetic resin, rosin-free (WEEE/RoHS compliant)
Type ISO-9454: 2231 (2.2.3.A) // DIN EN 61190-1-1 (IEC: ORL0)

Cat.-No. 6126

Technical data

Appearance:	colourless, transparent liquid
Hazardous goods:	No
VOC:	15 %
Solids content:	2.0 wt.-%
Acid number:	15 - 19 mg KOH/g
Halogen-free:	Yes
Resiny:	Yes
Density 20 °C	0.9 - 1.0 g/ml
Activators/resin:	di-carboxylic acids, synthetic resin
Available as a concentrate:	No
Flash point:	hardly flammable
Durability:	12 months

Description

EO-Y-014A is universally suitable for wave and selective soldering of PCBs. It contains organic, halogen-free, rosin-free, activating additives in a combination specially tuned to the thermal requirements of the wave soldering process with leaded and lead-free solders. EO-Y-014A contains small amounts of special alcoholic additives for stabilization and improved drying times compared to conventional water-based fluxes. The solids content is 2.0 wt.-%.

Customer added value

Wide range of applications (multiflux)
Very good soldering properties (capillarity, wetting)
Broad process window (high thermal stability, good activity over a long interval)
Very good residue behavior (optically very clean, high SIR)

Instructions for use::
Foam fluxes: Not recommended
Spray fluxing: If possible, try at first a quantity of 20 – 30 ml/min. and observe the distribution of the flux. After that, correct to the quantity. Air-pressure: 18 – 22 l/min.
Preheating: For “simple” PCBs, a preheating temperature of 80 – 110 °C is recommended, for “more complex” PCBs of 100 – 130 °C on the top side of the PCB. The use can be made both in leaded and lead-free solder systems.

This flux must be applied by spraying. After application, it is advisable to dry the flux in order to transform the liquid into fusible phase which favours the soldering operation.

Packaging units

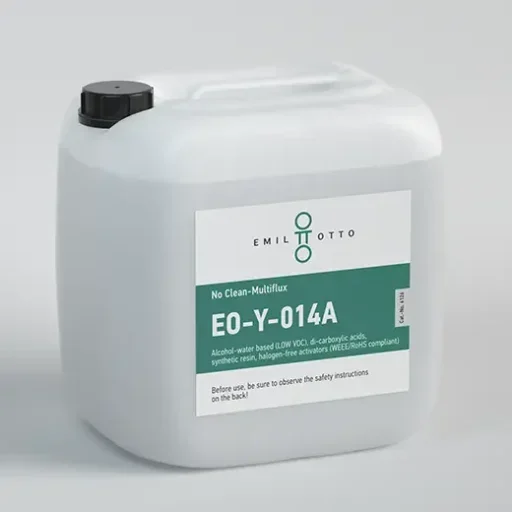

Canister: 5 l, 20 l

Extras: Other packaging units on request
