Spotting paste

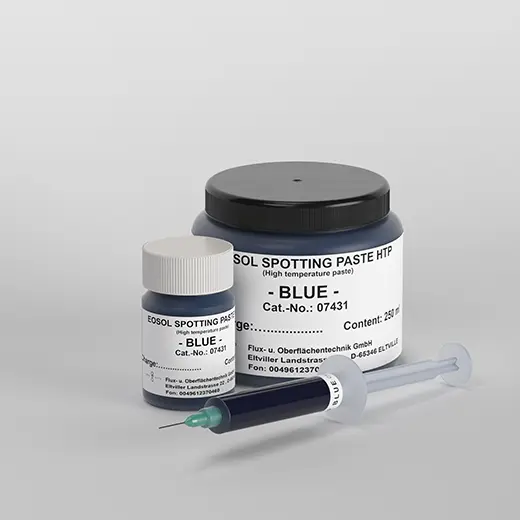

EOSOL Spotting Paste HTP Blue

Recommended method of application

For inspecting machined metallic surfaces, making workpiece contact patterns discernible, inspection of mechanical processing and verification of fitting accuracies

Highly effective, pasty contrast agent

Cat. no. 07431
07431_EO_EOSOL-TuschierpastenSpritze_Blau_EN_520x520px

Technical data

Appearance:blue paste
Density at 20 °C:approx. 0.9 g/ml
Critical temperatures:below 0 °C and above 40 °C
Dropping point:> 200 °C
Temperature area:0 - max. 600 °C

Description

EOSOL HTP spotting pastes are highly effective contrast agents for highlighting workpiece contact patterns and for checking mechanically machined surfaces.
The consistency of the spotting paste and incorporated special pigments make it easy to check the processed workpieces. The accuracy of fit can be checked by the uniform or non-uniform application of paint or color impression.

Customer added value

  • After sanding, the sanding residues are first removed
  • Then the spotting paste is applied between the machined surfaces
  • The surfaces are moved towards each other and then taken apart again
  • No restrictions of the excellent sliding and lubricating properties at 600 °C

Packaging units

Can: 250 ml, 500 ml
Syringe: 5 ml, 10 ml
Extras: Other packaging units on request
Download product information
Product information: EOSOL Spotting Paste HTP Blue
