Etimol PC 55 CA

Recommended method of application

Solder frame and condensate trap cleaning

Water-based ETIMOL concentrate

Cat. no. 5110

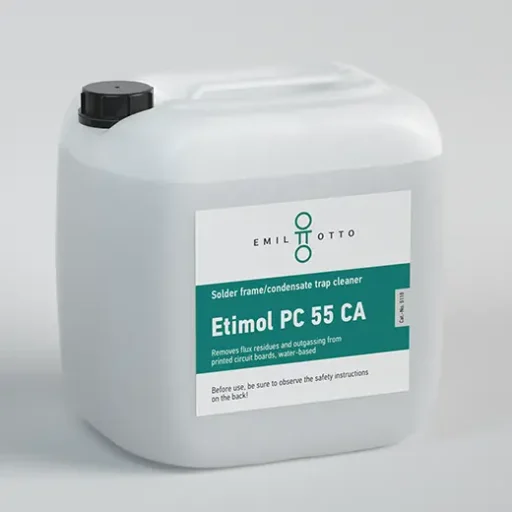

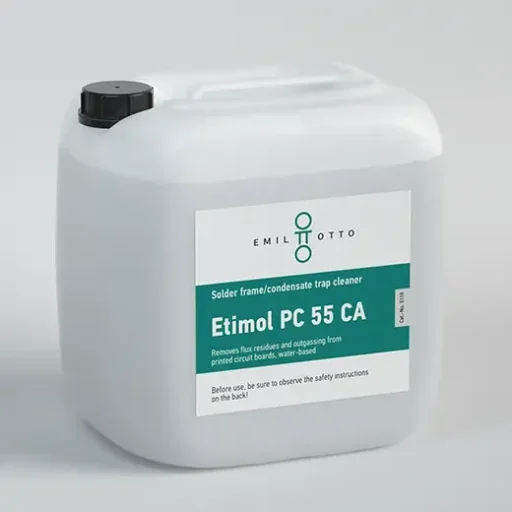

5110-Kanister-30l-Etimol-PC-55-CA-EN_520x520px

Technical data

Appearance:colourless to slightly yellow, clear liquid
Application:1:7 - 1:10 with DI water
ph-value:alkaline
Density at 20 °C:0.956 +/- 0.005 g/cm³
System:water-based (ready to use)
Operations temperature:ideally 45 - 65 °C
Reliable cleaning results with:flux residues, condensate from PCB boards
Storage conditions (recommendation):in closed original packaging at 10 – 25 °C
Transportation:No hazardous goods
Durability:36 months

Description

The water-based, alkaline cleaning medium efficiently removes flux residues from soldering frames, from condensate traps and from machine parts. Due to the foam-free formula, the product can be used in compressed-air supported systems as well as spray systems, in most cases without the addition of defoaming agents.

Instructions for use:
Depending on the case of application, the cleaning medium is diluted 1:7 - 1:10 with DI water and filled in the automatic cleaning system. Recommended cleaning temperature between 45 - 65 °C.

Note:
Consider approvals of equipment manufacturer!

Customer added value

  • Multi-purpose, aqueous cleaning media for soldering pallets, condensate trap and machine parts cleaning
  • Foamless formulation, residue-free rinsing, low odor
  • Replacement for flammable and corrosive chemicals in maintenance cleaning operations

Packaging units

Canister: 5 l, 10 l, 20 l, 30 l
Product information: Etimol PC 55 CA
