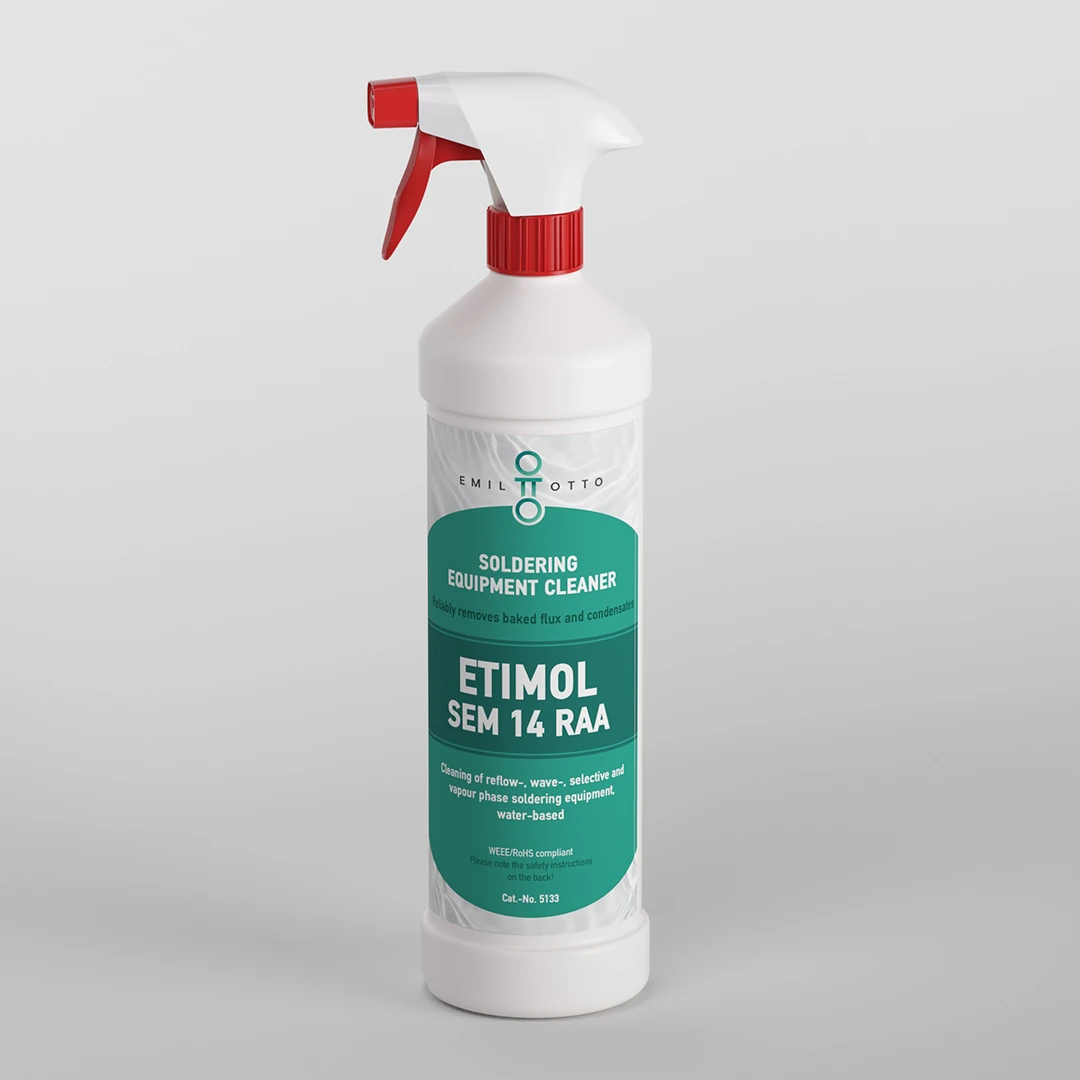

Etimol SEM 14 RAA

Recommended method of application

Soldering machine cleaner

Water-based, ready for use Etimol
Electronics cleaner

Cat. no. 5133
ETIMOL SEM 14 RAA_EN

Technical data

Appearance:colourless to amber-coloured, transparent liquid
Odour:mild
Density at 20 °C:1.000 +/- 0.005 g/ml
ph-value:alkaline: pH (9 - 13)
Halogen content:0 % (halide-free)
System:water-based with solvents and alkaline additives (active cleaning formulation with enhanced foaming effect)
Solvent:Glycol-based, free from short-chain alcohols
Boiling point/boiling range:>100 °C
Flash point:none (>85 °C)
Application:especially for foam application, ready to use
Reliable cleaning results with:flux residues, condensate from printed circuit boards, leaded and lead-free solder pastes, SMT adhesives
Storage conditions (recommendation):cool and dry at 5 - 25 °C, originally sealed
Hazardous goods:No
Durability:36 months

Description

Etimol SEM 14 RAA is a pH-alkaline water-based electronics cleaner formulated with special organic solvents. It has been developed with highly effective additives to achieve extremely high cleaning power. This improved formulation has excellent foaming and action properties. This means that baked-on flux and condensates are quickly and effectively cleaned and removed from PCBs from reflow, wave, selective and vapor phase soldering systems. Etimol SEM 14 RAA has a mild odor even when used in hot equipment and achieves better cleaning results, especially in oven cleaning processes, due to increased foaming.

The water-based formulation has been specially developed to ensure a high level of occupational safety in combination with the resulting high flash point. Etimol SEM 14 RAA supports the elimination of flammable and hazardous solvents from the production area. Our electronics cleaner consists exclusively of high-purity substances and is free of impurities. These have been specially selected for electronics production and do not cause corrosion.

Customer added value

  • Increased foam formation due to additional special additives
  • Highly efficient cleaning effect (improved cleaning formulation)
  • Very strong and effective formulation
  • Versatile application possibilities
  • Aqueous cleaning agent for the maintenance of soldering equipment
  • Leaves no sticky residue
  • Ensures better cleaning performance
  • Low odor
  • Non-flammable
  • Contains no corrosive chemicals (no corrosive chemicals during maintenance and cleaning work)
  • No dangerous goods



Instructions for use:
The cleaning agent is sprayed directly onto the surface to be cleaned at room temperature in the form of a very stable foam film, left to work for a few minutes and then wiped off. Thanks to the innovative composition, the mixture leaves no residue in the device, even at soldering temperatures of >200 °C.

Packaging units

Canister: 5 l, 20 l
Foam spray bottle: 1000 ml
Extras: Other packaging units on request
Product information: Etimol SEM 14 RAA
