Description

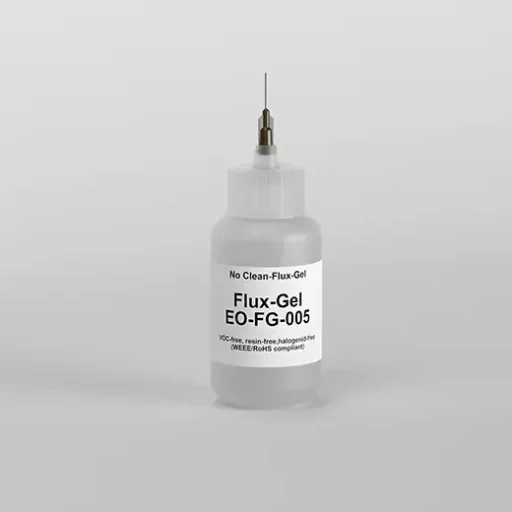

The No Clean flux gel EO-FG-005 is especially suitable for hand soldering, SMD soldering and strand tinning. This flux gel has been developed for a variety of soldering processes, as well as repair work on printed circuit boards, both for manual processes and for automation processes. The basis is an organic, strong-acting activator complex, which is formulated resin-free. EO-FG-005 is highly concentrated and is characterized among other things by high activity, as well as good wetting and spreading. Due to these properties, the flux gel should be applied sparingly. The gel application can be carried out with a wide variety of application options, for example manually with the aid of a metering bottle (this enables an accurate application or positioning of the flux).
Customer added value
- Perfect soldering results
- Highly effective
- Economical to use
- Also contaminated (old) pads and component pins are activated
- No crystal formation, paste remains homogeneous and stable
- Careful and targeted dosing
- Leaves no sticky residue
- Subsequent cleaning is not mandatory; if residues are left behind residues may remain on the assembly
