Flux gels for thermode soldering

FLUX GEL EO-HTW-49

Recommended method of application

Especially for high-temperature applications in the electronics sector

No Clean-Flux gel
Highly active, halide-free activated, VOC-free (WEEE/RoHS-compliant)
Type ISO 9454: 1131 // DIN EN 61190-1-1 (according to J-STD004): ROL0

Cat. no. 4769
eo-htw-49

Technical data

Appearance:light yellow to amber-colored, homogeneous liquid
Basis (main ingredients):concentrate of the flux HTW-49
Activator base:HTW-49 flux (ISO 9454: 1131)
VOC:0% (VOC-free)
Hazardous goods:No
Storage conditions:in closed original packaging at 5 – 25 °C
Durability:12 months

Description

This flux gel was developed for high-quality electronics production, for high-temperature applications in the soft soldering sector and for repair work on printed circuit boards. The activator base contains the same active ingredients as the comparable electronic flux HTW-49HTW-49.

FLUX GEL EO-HTW-49 is highly concentrated and is characterized, among other things, by high activity and good wetting and spreading properties. Due to these properties, the paste should be applied sparingly. The gel is applied from a dosing syringe using metal dosing needles. These enable precise application and positioning of the flux. The flux gel can be applied using a hot air or soldering iron. FLUX GEL EO-HTW-49 is non-corrosive.
The flux gel can be processed using a hot air or soldering iron. EO-HTW-49 is non-corrosive.

Customer added value

  • Ideal when using the flux HTW-49, uniform activator base
  • Recommended for applications according to IPC / IPC 610
  • Perfect soldering results
  • Economical to use
  • Also contaminated (old) pads and component pins are activated
  • No crystal formation, paste remains homogeneous and stable
  • Careful and targeted dosing
  • Metal dosing needle is thermally resilient and can be used during use be used with the hot air or soldering iron

Packaging units

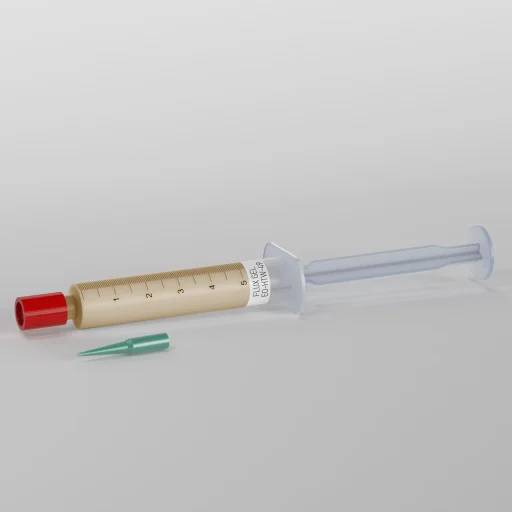

Syringe: 5 g
Extras: Cartridges for manual and automatic dosing systems available on request
Product information: FLUX GEL EO-HTW-49
