Description
This flux gel was developed for repair work on printed circuit boards. The activator base contains the same active ingredients as the comparable electronic flux EO-B-002A, EO-B-002B, EO-B-002B/X and EO-B-002C.

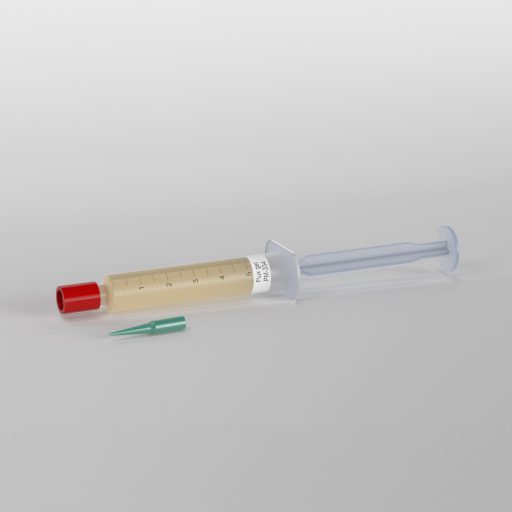

Flux gel PM-334 is highly concentrated and is characterized, among other things, by high activity as well as good wetting and spreading. Due to these properties, the paste should be applied sparingly. The gel is applied from a dosing syringe using metal dosing needles. These enable precise application or positioning of the flux. Flux gel PM-334 can be applied with a hot air or soldering iron.
In individual cases, which must be checked by the user, this flux gel can also be used to support the wave soldering of critical components. The application is carried out as described above.
Customer added value
- Ideal when using the PM-334 flux series, uniform activator base
- Recommended for applications according to IPC / IPC 610
- Perfect soldering results
- Economical in consumption
- Also contaminated (old) pads and component pins are activated
- Paste is stable and shows no signs of polymerization (no sticking)
- Careful and targeted dosage
- Metal dispensing needle can withstand thermal stress and can be used during used with hot air or soldering iron
- Leaves no sticky residue
