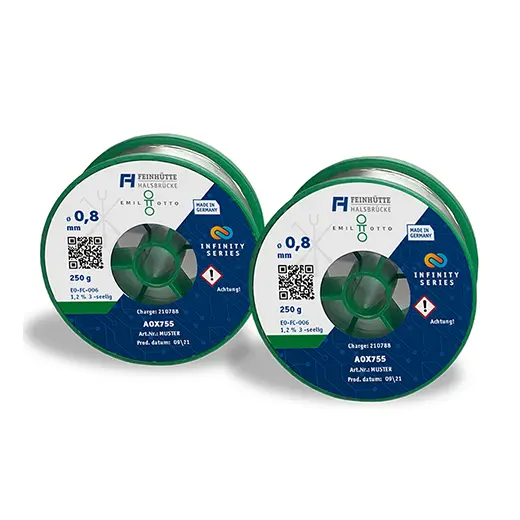

Tube solder Infinity Series

Recommended method of application

Soldering of solar modules, manual, wave and laser soldering

Tubular solder especially for the solar industry

RL_infinity_series_520x520px

Technical data

Alloy:Sn63-Pb37(leaded)
Flux class:REL0 Flux: EO-FC-006
Flux portion:1.2 % or 1.6 %
Melting point:138 °C

Description

The new, innovative INFINITY SERIES tubular solders guarantee excellent soldering results from hand soldering to wave soldering and laser soldering. The tubular solders are filled with a halogenide-free high-performance filling compound. The basis of the filling compound is a high-purity synthetic resin, which is combined with a unique synthetic activation complex and therefore meets even the highest quality production requirements to the highest degree. The activation effect of the filling compound is more than on a par with previous halogenide-containing filling compounds, even though the 1 to 3-segment tubular solders only have a flux content of 1.2 % or 1.6 %.

The solders are processed almost splatter-free, with minimal smoke development and excellent residue behavior, leaving no dark discoloration or sticky residue. The soldering results are excellent.

Customer added value

  • Halogen-free high-performance filling compound
  • Flux content from 1.2 % with high activation effect
  • Virtually splash-free application of the solder
  • Low smoke development
  • Excellent residue behavior
  • Consistently good soldering results

Packaging units

Wires: 0.3 mm, 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm
Coil types: 50 g, 100 g, 250 g, 1000 g, 4000 g, 6000 g, 10000 g
Product information: Tube solder Infinity Series
