Soldering of solar modules, tabber and stringer material and connecting of cells
No Clean-Flux especially for the solar industry
Di-carboxylic acid complex, halide-free, rosin-/resin-free (WEEE/RoHS compliant)
Type ISO-9454: 2131 (2.1.3.A) // DIN-EN 61190-1-1 (acc. J-STD-004B) (IEC ORL0)
| Appearance: | colourless, clear liquid |
| Solids content: | 1.8 wt.-% |
| Density at 20 °C: | 0.86 - 0.88 g/ml |
| Acid number: | 15 - 18 mg KOH/g |
| Activators/resin: | di-carboxylic acid complex, halide-free, resin-/rosin-free |
| Solvent: | short chain alcohols |
| Flash point: | 20 °C |

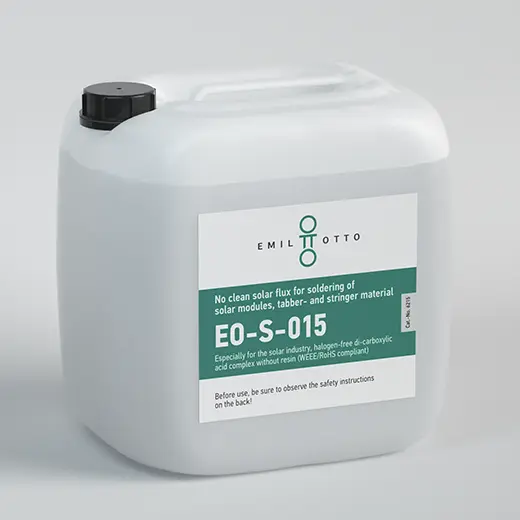

This No Clean-Flux was specially developed for the solar industry, in particular for soldering solar modules, tabber and stringer material as well as for connecting cells. EO-S-015 is formulated halide-free and leaves no sticky residue.
The activators are specially designed for the production of solar modules. The solids content is 1.8%.
Recommendations for the processing of this flux:
In general, flux should be applied in a minimal quantity.
