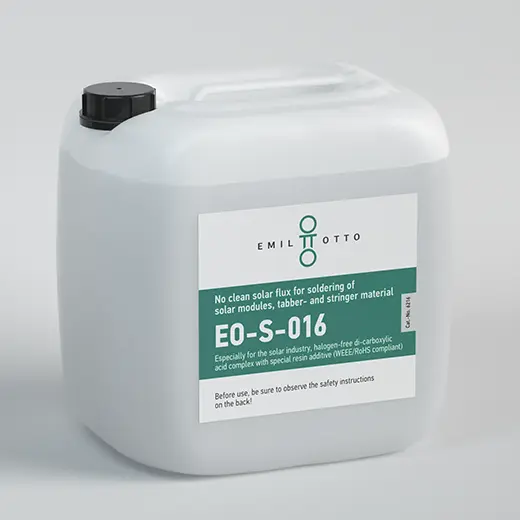

Soldering of solar modules, tabber and stringer material and connecting of cells
No Clean-Flux especially for the solar industry
Di-carboxylic acid complex, halide-free, synthetic resin additive (WEEE/RoHS compliant)
Type ISO-9454: 2231 (2.2.3.A) // DIN-EN 61190-1-1 (acc. J-STD-004B): (IEC ORL0)
| Appearance: | colourless to yellowish, transparent liquid |
| Solids content: | 1.9 wt.-% |
| Density at 20 °C: | 0.793 (+/- 0.003) g/ml |
| Acid number: | 15 - 18 mg KOH/g |
| Activators/resin: | di-carboxylic acid complex, halide-free, synthetic resin additive |
| Solvent: | short-chain alcohols |
| Flash point: | 12 °C |
| Available as a quick-drying version: | Yes |
This No Clean-Flux was specially developed for the solar industry, in particular for soldering solar modules, tabber and stringer material as well as for connecting cells. EO-S-016 is formulated halide-free and leaves no coloring or sticky residues.
The activators are specially designed for the production of solar modules. The solids content is 1.9%.
Recommendations for the processing of this flux:
In general, flux should be applied in a minimal quantity.
