SOLAR FLUX GEL EO-S-002

Recommended method of application

Soldering of solar modules, tabber and stringer material and connecting of cells

No Clean-Flux gel especially for the solar industry
Highly active, halide-free activated (WEEE/RoHS-compliant)
Type ISO-9454: 2231 // DIN EN 61190-1-1 (according to J-STD004): L0 (IPC: ORL0)

Cat.-No. 4743

Technical data

Appearance:	light yellow-amber paste
Ingredients:	concentrated ingredients based on EO-S-002
Activators:	based on EO-S-002
VOC:	0% (VOC free)
Storage conditions:	cool and dry in the sealed original container at 5 – 25 °C
Processing temperature:	at room temperature (20 - 25 °C)
Hazardous goods:	No
Durability:	12 months

Description

This flux gel was specially developed for the solar industry, in particular for soldering solar modules, tabber and stringer material as well as for connecting cells. The activator base contains the same active ingredients as the comparable solar flux SOLAR FLUX-EO-S-002 and EO-S-002/FD.

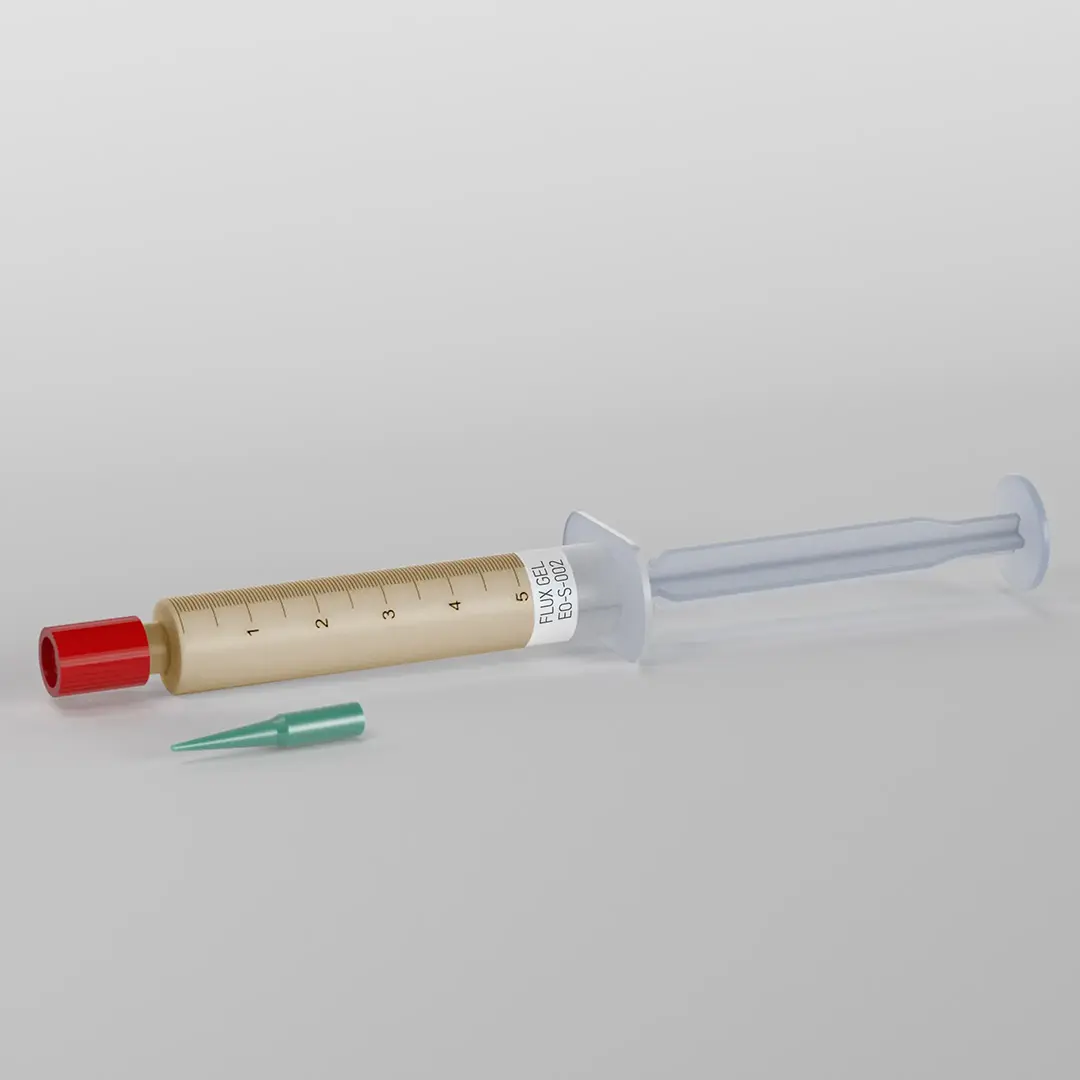

The solar flux gel EO-S-002 is highly concentrated and is characterized by high activity and good wetting and spreading. Due to these properties, the paste should be applied sparingly. The gel is applied from a dosing syringe using metal dosing needles. These enable precise application and positioning of the flux.

SOLAR FLUX GEL EO-S-002 is a non-corrosive flux gel.

Customer added value

Ideal when using fluxes of the type SOLAR FLUX-EO-S-002, uniform activator base
Perfect soldering results
Economical to use
The paste is stable and shows no signs of polymerization (no sticking)
Careful and targeted dosing
Leaves no sticky residue

Packaging units

Syringe: 5 g

Extras: Cartridges for manual and automatic dosing systems available on request
