Electronics

SSK-15

Recommended method of application

Hand and repair soldering, dip soldering, strand tinning

No Clean-Flux, alcohol-based
Di-carboxylic acids, high resin content, halide-free (WEEE/RoHS-compliant)
Type ISO-9454: 1131 // DIN EN 61190-1-1 (according to J-STD-004) (IEC: ROL0)

Cat. no. 2041

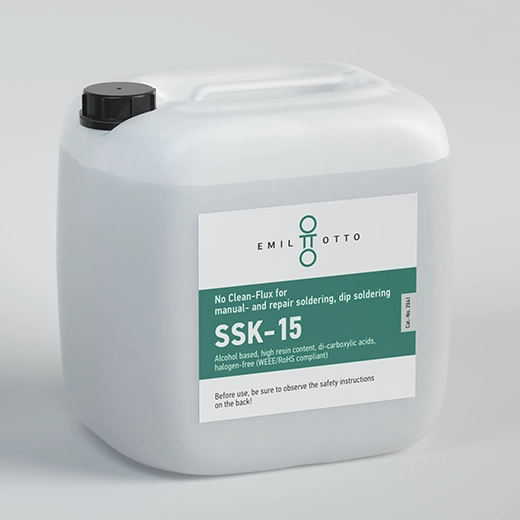

2041-Kanister-SSK-15-EN_520x520px

Technical data

Appearance:light yellow to amber-colored, clear liquid
Hazardous goods:Yes
Solids content:15.0 wt.-%
Acid number:45 - 55 mg KOH/g
Halogenide-free:Yes
Resinous:Yes
Available as a concentrate:Yes
Density 20 °C0.830 (+/-0.005) g/ml
Flash point:12 °C
Durability:12 months

Description

The flux SSK-15 has a high solids content and contains organic, halogen-free activation additives. The flux can be applied using all common methods, although spray fluxing is not advisable due to the high solids content. The main areas of application are hand soldering, repair and dip soldering as well as strand tinning. The flux residues are encapsulated due to the high resin content.

Customer added value

  • Wide range of applications
  • Very good soldering properties (capillarity, wetting)
  • Broad process window (high thermal stability, good activity over a long interval)

Packaging units

Canister: 20 l
Concentrate: for 5 l, for 10 l, for 20 l
Product information: SSK-15
