Metal
Solder paste

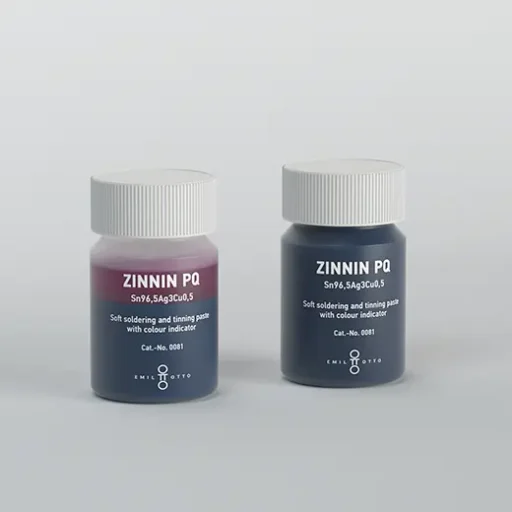

ZINNIN PQ Sn96.5Ag3Cu0.5

Recommended method of application

Conventional soft soldering of steel, stainless steel, iron, copper and brass materials

Cat.-No. 0081
0081_EO_Zinnin-PQ-SN-96_EN_520x520px
0081_EO_Zinnin-PQ-SN-96_EN_520x520px

Technical data

Metal alloy:Sn96.5Ag3.0Cu0.5
Particle size:< 80 μ
Metal content:> 70 %
Flux type:3.1.2.A
Flux content:< 30 %
Detection:UV-active
Durability:24 months

Customer added value

  • Solder paste for soft soldering and tinning of steel, brass and copper alloys
  • Good handling, no dripping
  • No separate solder dispenser necessary
  • Separation due to storage is indicated by colour, can be easily homogenized by stirring
  • Very highly activated
  • Flux residues visible under UV light
  • Flux residues are easy to be removed

Packaging units

Can: 300 g
Extras: Other packaging units on request
Product information: ZINNIN PQ Sn96.5Ag3Cu0.5
