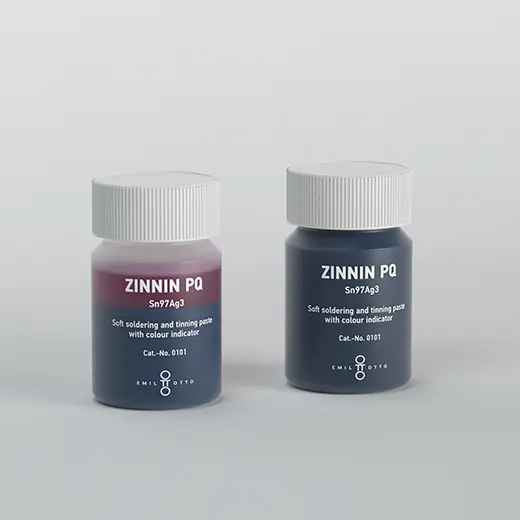

Solder paste

ZINNIN PQ Sn97Ag3

Recommended method of application

Conventional soft soldering and tinning for stainless steel and steel alloys

Ready-to-use paste containing silver with Sn97 Ag3 for stainless steel alloys, lead-free (WEEE/RoHS compliant)
Type ISO-9454: 3124 (3.1.2.A)

Cat. no. 0101
0101_EO_Zinnin-PQ-SN-97Ag3_EN_520x520px

Technical data

Metal alloy:Sn97Ag3
Particle size:< 80 μ
Metal portion:> 70 %
Flux type:3.1.2.A
Flux portion:< 30 %
Detection:UV-active
Durability:24 months

Customer added value

  • Solder paste for soft soldering and tinning, especially for high-alloy stainless steel and steel alloys
  • Good handling, no dripping
  • No separate solder dispenser necessary
  • Separation due to storage is indicated by colour, can be easily homogenized by stirring
  • Very highly activated
  • Flux residues visible under UV light
  • Flux residues are easy to be removed

Packaging units

Can: 300 g
Extras: Other packaging units on request
Product information: ZINNIN PQ Sn97Ag3
