EN
Electronics
Solder paste

ZINNIN PQ Sn97Cu3

Recommended method of application

Conventional soft soldering of steel, stainless steel, copper and brass materials

Ready-to-use paste with Sn97Cu3, lead-free (WEEE/RoHS compliant)
Type ISO-9454: 3124 (3.1.2.A)

Cat. no. 0093

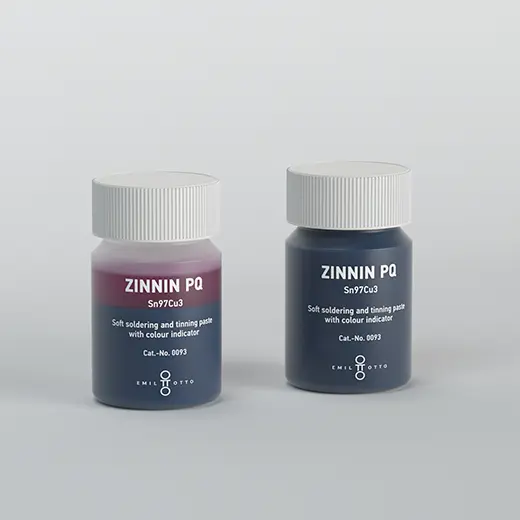

0093_EO_Zinnin-PQ-SN-97Cu3_EN_520x520px

Technical data

Metal alloy:Sn97Cu3
Particle size:< 80 μ
Metal portion:> 70 %
Flux type:3.1.2.A
Flux portion:< 30 %
Detection:UV-active
Durability:24 months

Customer added value

  • Solder paste for soft soldering and tinning of steel, stainless steels, brass and copper alloys
  • Good handling, no dripping
  • No separate solder dispenser necessary
  • Separation due to storage is indicated by colour, can be easily homogenized by stirring
  • Very highly activated
  • Flux residues visible under UV light
  • Flux residues are easy to be removed

Packaging units

Can: 300 g
Extras: Other packaging units on request
Product information: ZINNIN PQ Sn97Cu3
