Alcohol-based fluxes

Solder tincture WFF (metal)

Recommended method of application

Manual, repair and dip soldering, soldering on ceramic substrates, strand tinning

Flux, alcohol-based
Di-carboxylic acids, high resin content, acitivated by halogenated amine (WEEE/RoHS compliant)
Type ISO-9454: 1123 // DIN EN 61190-1-1: M1 (ROM1)

Cat. no. LF-06

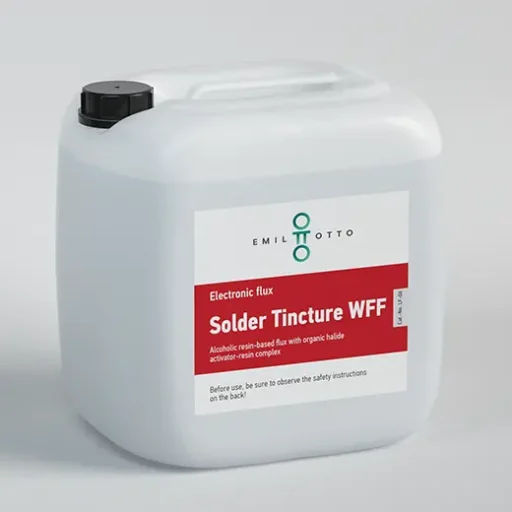

LF-06-Kanister-Solder-Tincture-WFF-EN_520x520px

Technical data

Appearance:yellowish to brownish, turbid liquid
Solids content:38 wt.-%
Hazardous goods:Yes
Acid number:25 - 28 mg KOH/g
Halogenide-free:No
Resiny:Yes
Density 20 °C0.81 (+/-0.90) g/ml
Flash point:12 °C
Durability:12 months

Description

The Solder Tincture WFF is a halogenated flux which can be used for manual, repair and dip soldering. The Solder Tincture WFF is in particular suitable for soldering on ceramic substrates or for braid tinning. The flux has a great temperature stability and a very good activation. The residue behavior is very good. The flux residues are water-soluble.

Customer added value

  • Wide range of applications
  • Soldering on ceramic substrates
  • Braid tinning
  • Very good soldering properties (capillarity, wetting)
  • Broad process window (very high thermal stability, good activity over a long interval)
  • Very good residue behavior (water-soluble)

Packaging units

Canister: 20 l
Product information: Solder tincture WFF (metal)
