Soldering of solar modules, tabber and stringer material and connecting of cells
No Clean-Flux gel especially for the solar industry
Highly active, halide-free activated (WEEE/RoHS-compliant)
Type ISO-9454: 2231 // DIN EN 61190-1-1 (according to J-STD004): L0 (IPC: ORL0)
| Appearance: | light yellow-amber paste |
| Ingredients: | concentrated ingredients based on EO-S-002 |
| Activators: | based on EO-S-002 |
| Flash point: | 0% (VOC free) |
| Storage conditions: | cool and dry in the sealed original container at 5 - 25 °C |
| Working temperature: | at room temperature (20 - 25 °C) |
| Hazardous goods: | No |
| Durability: | 12 months |
This flux gel was specially developed for the solar industry, in particular for soldering solar modules, tabber and stringer material as well as for connecting cells. The activator base contains the same active ingredients as the comparable solar flux EO-S-022 and EO-S-022/FD. EO-S-002 and EO-S-002/FD.

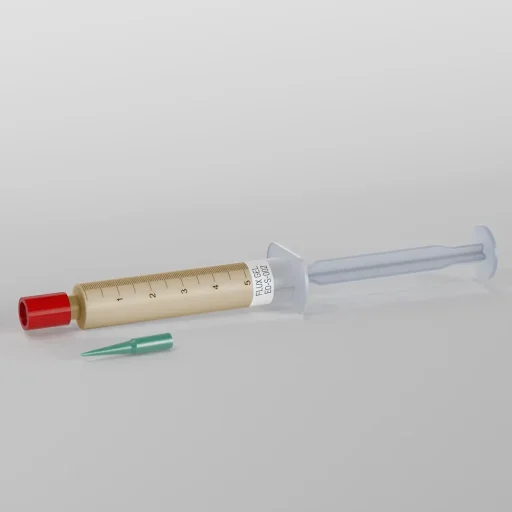

The solar flux gel EO-S-002 is highly concentrated and is characterized by high activity and good wetting and spreading. Due to these properties, the paste should be applied sparingly. The gel is applied from a dosing syringe using metal dosing needles. These enable precise application and positioning of the flux.
SOLAR FLUX GEL EO-S-002 is a non-corrosive flux gel.
