Soldering of solar modules, tabber and stringer material and connecting of cells
No Clean-Flux especially for the solar industry
Carboxylic and di-carboxylic acid complex, halide-free, resin/rosin additive (WEEE/RoHS compliant)
Type ISO-9454: 2231 (2.1.3.A) // DIN-EN 61190-1-1 (J-STD-004B) (IEC ORL0)
| Appearance: | colourless, light yellowish, transparent liquid |
| Solids content: | 2.0 wt.-% |
| Density at 20 °C: | 0.82 - 0.88 g/ml |
| Acid value: | 18 - 21 mg KOH/g |
| Activators/resin: | carboxylic and di-carboxylic acid complex, halide-free, with special resin/rosin additive |
| Solvent: | alcohol/partially water-based |
| Flash point: | 12 °C |
| Additives: | wetting agent, alcohol compound: 75 % |
| VOC: | 75 % |

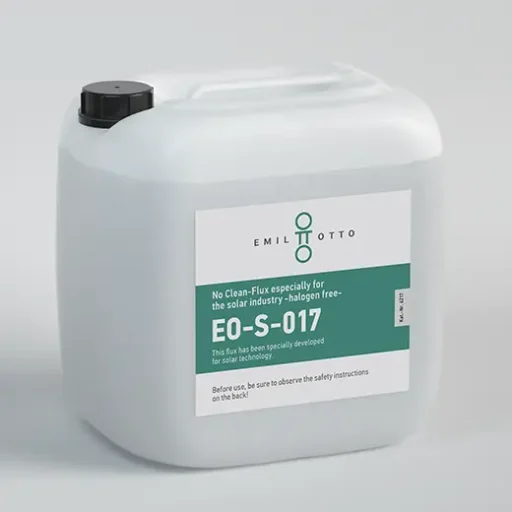

This No Clean-Flux was specially developed for the solar industry, in particular for soldering solar modules, tabber and stringer material as well as for connecting cells. EO-S-017 is formulated halide-free and leaves no sticky residue.
The activators are specially designed for the production of solar modules. The solids content is 2%.
Recommendation from practice:
In general, flux should be applied in a minimal quantity.
