Description
This special flux is based on a high-performance bromide activator and does not contain any heavy metal compounds such as zinc or zinc ammonium chloride. Instead, it relies predominantly on organic halogen compounds. These are characterized by the fact that they dissolve oxides spontaneously and intensively on the one hand, and successively decompose from approx. 230 - 260 °C (max. 350 °C) on the other. Hardly any residues remain when the process is adapted.

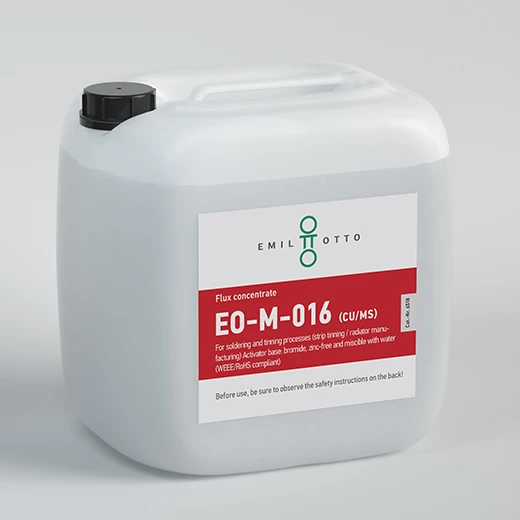

EO-M-016 was specially developed for the continuous surface finishing of copper and brass strips and wires with pure tin, Sn/Pb alloys and other Sn alloys. The main areas of application are strip tinning and radiator production. The flux can be used in these processes at very high throughput speeds due to the exceptional reaction speed and the resulting "fast boiling out" as well as the fast drying.
The flux also contains specially formulated surface-active additives that offer the advantages of intensive wetting and economical consumption.
Customer added value
- Based on organic halogen compounds
- Very good residue behavior
- Fast boiling out and fast drying of the flux
- Intensive wetting with economical consumption
