EO-RF-WB30 (Reworkflux)

Recommended method of application

Selective and manual soldering, strand tinning

No Clean-Flux, alcohol-based
Di-carboxylic acid complex, halogen-free (WEEE/RoHS compliant)
Type ISO-9454: 2131 (2.1.3.A) // DIN-EN 61190-1-1 (according to J-STD004) (IEC ORL0)

Cat. no. 4638 (#2963, #3967, #3968)

Technical data

Appearance:	colourless to light yellow liquid
Hazardous goods:	Yes
Solids content:	4.0 wt.-%
Acid number:	30 - 36 mg KOH/g
Halogenide-free:	Yes
Resinous:	No
Available as a concentrate:	No
Density at 20 °C:	0.797 (+/- 0.003) g/ml
Flash point:	12 °C
Durability:	12 months

Description

This flux was specially developed for selective and manual soldering processes as well as strand tinning.
EO-RF-WB30 contains the activator system from our proven water-based flux: WB-30...-"System" (and other variants). It is applied using the special EO-Flux dosing bottle, but can also be applied using all standard application methods (except foaming). The solids content is 4 wt.-%. This flux is very versatile. Good results have been achieved in both manual and selective soldering as well as in cable assembly/strand tinning. The general rule is to use applied
This also applies to this product.

Packaging units

Dosing bottle: 50 ml

Metering pen: 8 ml

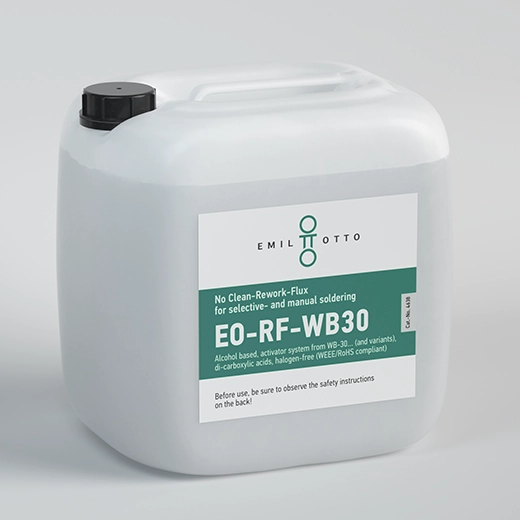

Canister: 5 l, 10 l, 20 l, 30 l

Download product information

Product information: EO-RF-WB30 (Reworkflux)
