Soft soldering flux

Flux SP-6000

Recommended method of application

Manual soldering, cable assemblies, conventional soft soldering of copper and brass materials

Alcohol-based flux with halogen-free activators
Type ISO 9454: 2.2.3.A // DIN EN 61190-1-1: (IEC OR/L0) (WEEE/RoHS compliant)

Cat. no. 2222

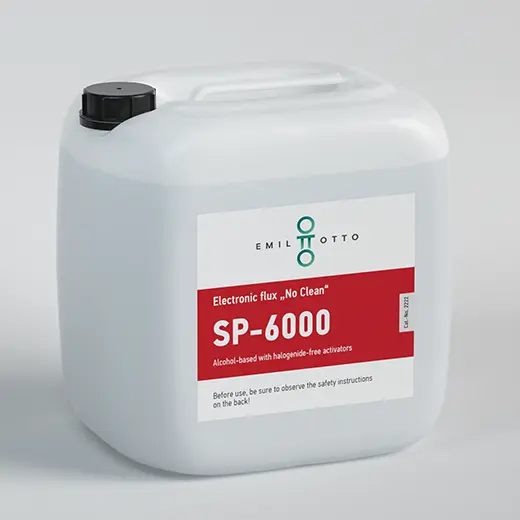

2222_EO_SP6000_Kanister30l_EN_520x520px

Technical data

Appearance:colourless to yellowish, clear liquid
Solids content:3.0 wt.-%
Density at 20 °C:0.796 (+/- 0.003) g/cm³
Acid number:23.0 - 25.0 mg KOH/g
Activators:di-carboxylic acids
Solvent:short-chain alcohols
Flash point:must be removed
Durability:24 months

Customer added value

  • Universal flux for many soldering processes such as manual soldering, cable assembly, and conventional non-electronic applications (soft soldering of copper and brass)
  • Very good soldering properties, very strong activation
  • Very broad process window
  • High flux-remnant surface resistance (SIR): very clean

Packaging units

Canister: 5 l, 20 l
Extras: Other packaging units on request
Download product information
Product information: Flux SP-6000
