Electronics
Solder grease

High Performance Soldering Grease acc. to Luiz

Recommended method of application

Standard soft soldering process, copper, zinc, brass, steel and high-alloy stainless steels, radiator manufacturing, tool making and mechanical engineering, roofing, installation and plant construction, measurement and control technology

Soldering grease for all common metal surfaces incl. stainless steel, UV detectable (WEEE/RoHS compliant)
Type ISO-9454: 3114 // DIN EN 61190-1-1: H1

Cat. no. 4002

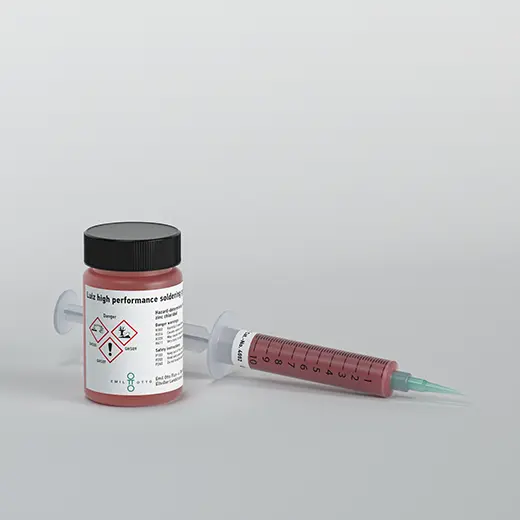

4002_EO_LoetfettNachLuiz_LoetfettUndSpritze_EN_520x520px

Technical data

Appearance:bright pink, opaque, homogeneous soldering grease
Dyn. viscosity:10 – 15 mm²/s (kin. viscosity at 100 °C (ASTM D 7042))
Activators/resin:inorganic, acid-free active complex with UV formulation
Durability:36 months (after date of manufacturing)

Customer added value

  • Flawless soldering and tinning results
  • Very high activity
  • Wide process window
  • Also for heavily oxidized and contaminated metal surfaces
  • No crystal formation, solder grease formulation remains homogeneous and stable
  • Careful and targeted dosage
  • Adjustable
  • Economical consumption
  • UV detection possible
  • Water repellent
  • Forms a temporary corrosion protection depending on the application

Packaging units

Brush bottle: 30 g, 50 g
Syringe: 5 g, 10 g
Product information: High Performance Soldering Grease acc. to Luiz
