Soldering solar modules, tabber and stringer material and connecting of cells
No Clean-Flux especially for the solar industry
Di-carboxylic acid complex, halide-free (WEEE/RoHS compliant)
Type ISO-9454: 2131 (2.1.3.A) // DIN-EN 61190-1-1 (acc. J-STD004B) (IEC ORL0)
| Appearance: | colourless to yellowish, transparent liquid |
| Solids content: | 2.0 wt.-% |
| Density at 20 °C: | 0.794 (+/-0.003) g/ml |
| Acid number: | 15 - 18 mg KOH/g |
| Activators/resin: | di-carboxylic acid-resin complex, halide-free |
| Solvent: | short-chain alcohols |
| Flash point: | 12 °C |
| Available as a quick-drying version: | Yes |

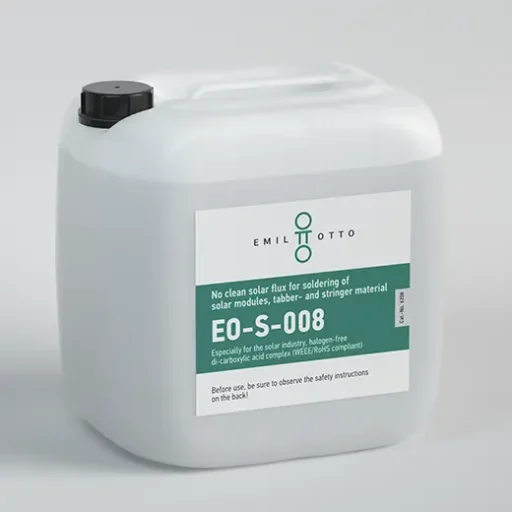

This flux has been specially developed for solar technology, in particular for soldering solar modules, tabber and stringer material as well as connecting cells. EO-S-008 is a No Clean-Flux, halide-free formulated and leaves no sticky residue.
The activators are specially designed for the production of solar modules. The solids content is 2%. EO-S-008 is totally free from corrosion action.
Recommendation from practice:
In general, flux should be applied in a minimal quantity.
