Visitors to the trade fair will be introduced to the additional variants A, C and OVAP of the multi-flux fluxes EO-F-001 and 002 as well as the entire portfolio in hall A4, booth 315. In addition to fluxes, this also includes cleaning media, solders, soldering aids and ESD products.
The fluxes EO-F-001 and 002 were specially developed for wave, selective, dip and manual soldering processes as well as for cable assembly and differ in the composition of the activator systems and the VOC content. Both products belong to the multiflux fluxing agents, which can be used for both spray and foam fluxing. They impress with their versatility and offer a high degree of process reliability. A particular advantage is their no-clean property. PCBs usually do not need to be washed after processing, which eliminates additional process steps and thus saves costs.
"The advantage of the EO-F variants is that, despite the reduced alcohol content, they can be used almost identically to pure alcohol-based fluxes. Our EO-F-001 and EO-F-002 variants are in high demand, especially in the Southern and Eastern European markets."
Thanks to their non-corrosive formulation and halide-free activators, the other flux variants EO-F-001A and EO-F-001C ensure reliable and durable solder joints. Users benefit from flexible applicability in both leaded and lead-free soldering processes as well as the option of using different application methods, including foam fluxing. With a solids content of 2 % for EO-F-001A and 4 % for EO-F-001C, two further variants are available. The respective OVAP variants are suitable for all application areas, but not for foam fluxing.
EO-F-001C/OVAP
Spray fluxing, selective, manual and dip soldering
No Clean-Flux, alcohol- and water-based
Di-carboxylic acid resin complex, halide-free (WEEE/RoHS compliant)
Type ISO 9454: 2231 // DIN-EN 61190-1-1 (according to J-STD-004):L0 (IPC ORL0)
EO-F-001A (Multiflux)
Foam and spray fluxing, selective, manual and dip soldering
No Clean-Flux, alcohol- and water-based
Di-carboxylic acid-resin complex, halide-free (WEEE/RoHS compliant)
Type ISO 9454: 2231 / DIN-EN 61190-1-1 (according to J-STD-004) (IPC ORL0)
"We therefore have alternatives for all manufacturing environments, especially for those in which flux application using foam is used or should be deliberately excluded. We thus offer clear process differentiation and customers can choose between a universal version including foam fluxes and a specialized OVAP version, which is also more attractively priced. In the case of pure application by spraying, the additive for foaming can be dispensed with. With the EO-F-001A and EO-F-001C, we not only offer the highest quality and safety, but also clear economic and sustainable advantages thanks to reduced cleaning steps, lower resource consumption and high process stability."
All EO-F-001 variants have a VOC content of 93 %.

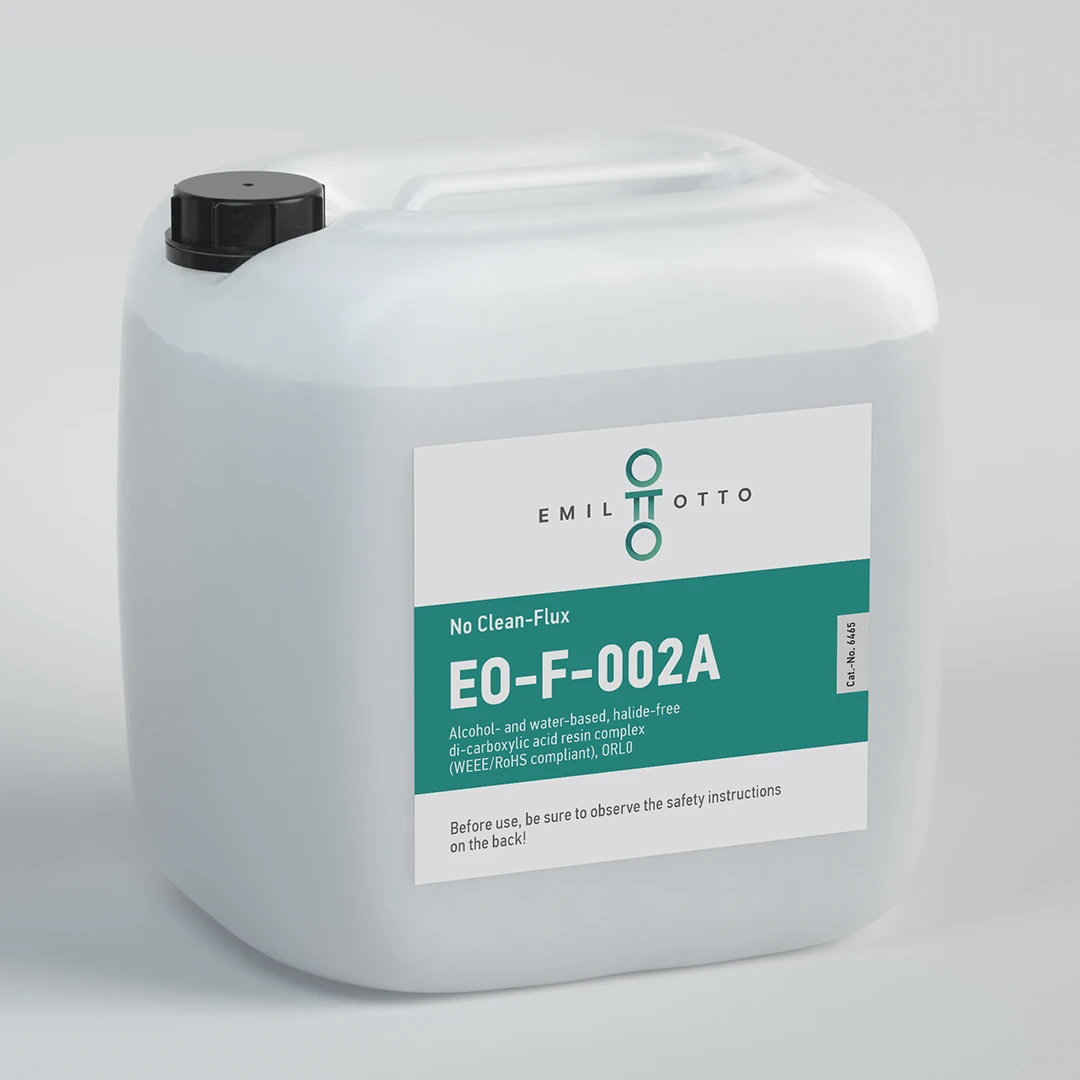

EO-F-002A (Multiflux)
Foam and spray fluxing, selective, manual and dip soldering
No Clean-Flux, alcohol- and water-based
Di-carboxylic acid resin complex, halide-free (WEEE/RoHS compliant)
Type ISO 9454: 2231 / DIN-EN 61190-1-1 (according to J-STD-004):L0 (IPC ORL0)

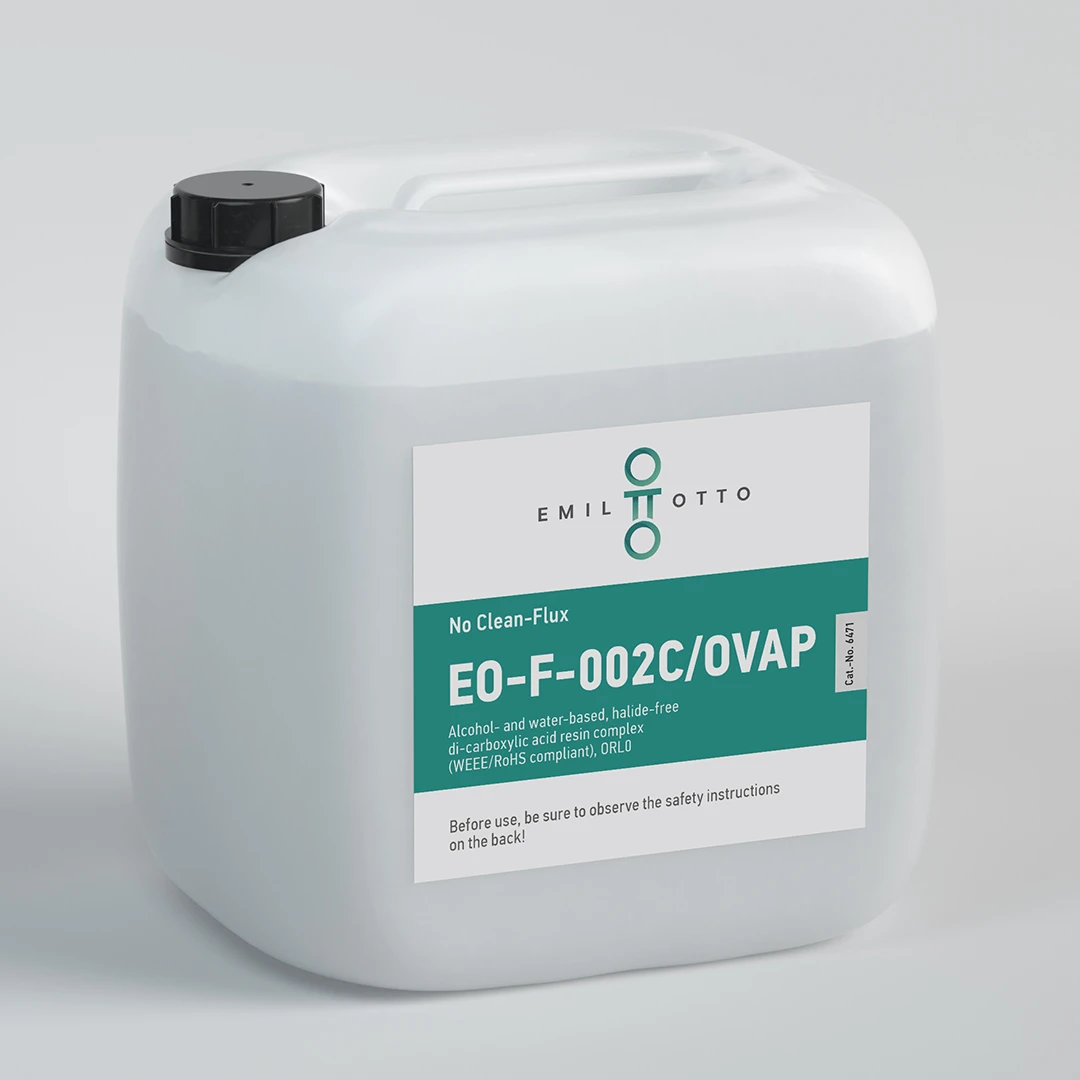

EO-F-002C/OVAP
Spray fluxing, selective, manual and dip soldering
No Clean-Flux, alcohol- and water-based
Di-carboxylic acid resin complex, halide-free (WEEE/RoHS compliant)
Type ISO 9454: 2231 // DIN-EN 61190-1-1 (according to J-STD-004):L0 (IPC ORL0)
Des Weiteren stellt Emil Otto die Flussmittelvarianten EO-F-002A und EO-F-002C vor. Hierbei handelt es sich ebenfalls um hochentwickelte No Clean-Produkte, die speziell für Wellen-, Selektiv-, Tauch- und Handlötprozesse sowie für die Kabelkonfektionierung entwickelt wurden. Anwender profitieren von einem optimalen Zusammenspiel aus hoher Prozesssicherheit, effizienter Verarbeitung und nachhaltigem Ressourceneinsatz. Der größte Vorteil für die Fertigung liegt auch hier in der No-Clean-Eigenschaft. Die EO-F-002 Serie ist als nicht-korrosiv eingestuft und sorgt für zuverlässige, langlebige Lötstellen. Mit einem Feststoffgehalt von 2 % bei EO-F-002A oder 4 % bei EO-F-002C können Kunden je nach Prozessanforderung die passende Variante wählen. Dank der halogenidfreien Aktivatoren und eines modernen Lösungsmittelkonzepts mit reduziertem VOC-Gehalt von 75 % unterstützen die Flussmittel zudem eine umweltfreundlichere Fertigung. Die OVAP-Versionen EO-F-002A/OVAP und EO-F-002C/OVAP erweitern das Portfolio um Varianten, die speziell für alle Auftragsverfahren außer Schaumfluxen optimiert sind.
Erfahren Sie mehr zu unseren alkohol-wasserbasierenden Flussmitteln für die Elektronikfertigung.
