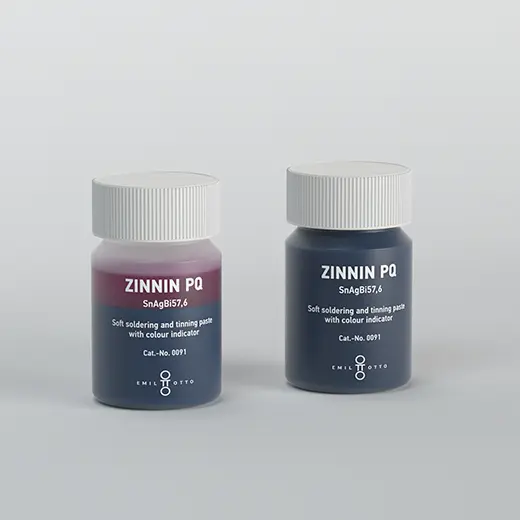

Solder paste ZINNIN PQ SnAgBi57.6

Recommended method of application

Conventional soft soldering of steel, stainless steel, iron, copper and brass materials

Ready-to-use paste with SnAgBi57,6, lead-free, low-melting
Type ISO-9454: 3124 (3.1.2.A)

Cat.-No. 0091

Technical data

Metal alloy:	SnAgBi57.6
Melting range (solder):	137 °C
Working temperatures:(recommendation)	190 - 230 °C (max. 400 °C)
Particle size:	< 80 μ
Metal content:	> 70 %
Flux type:	3124 (3.1.2.A)
Flux content:	< 30 %
Detection:	UV-active
Durability:	24 months

Solder paste for soft soldering and tinning of steel, brass and copper alloys
Good handling, no dripping
No separate solder dispenser necessary
Separation due to storage is indicated by colour, can be easily homogenized by stirring
Very highly activated
Flux residues visible under UV light
Flux residues are easy to be removed

Can: 300 g

Extras: Other packaging units on request

Product information: ZINNIN PQ SnAgBi57.6
